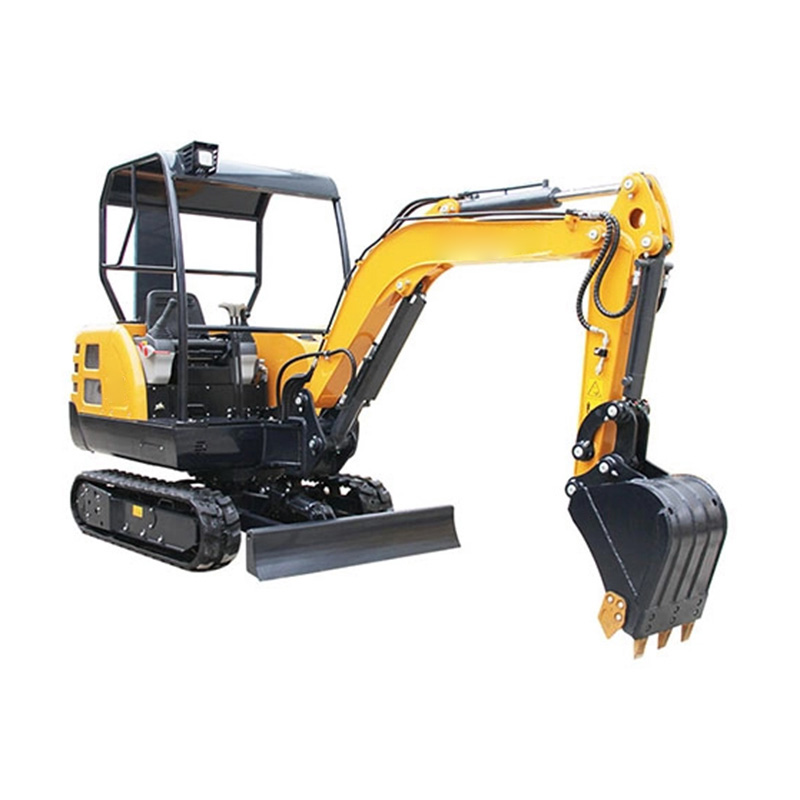

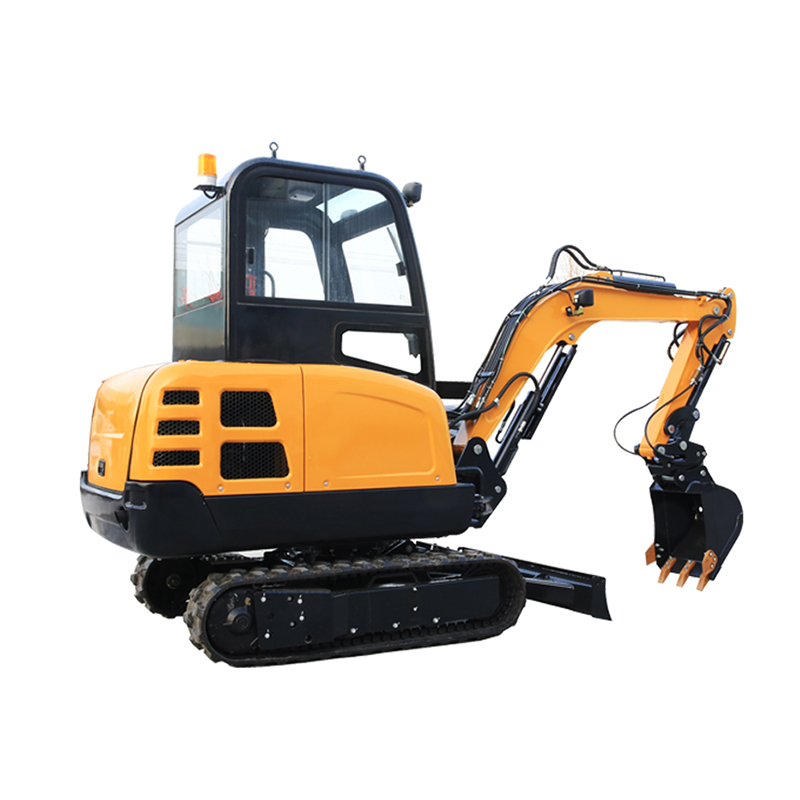

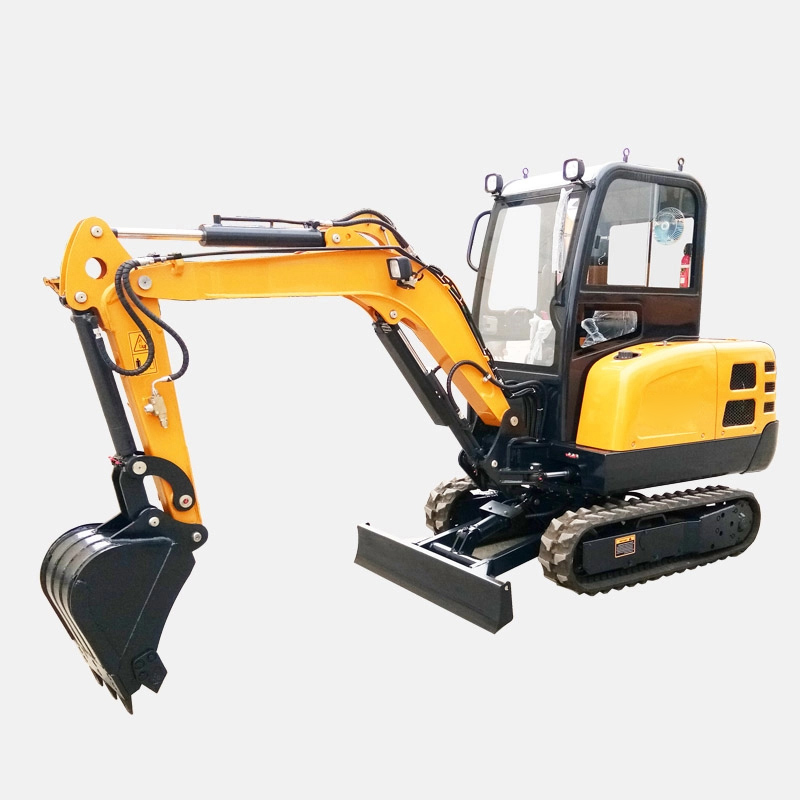

2.5T 2500kg Mini Excavator
Simple, Compact Structure for Easy Installation and Maintenance：The machine features a straightforward design with a compact layout, making setup and routine servicing quick and convenient.
Equipped with High-Quality Components from Leading Global Brands：Advanced, internationally recognized pneumatic, electrical, and operational components ensure reliable performance and long service life.
Optimized for Reduced Oil Consumption and High Working Efficiency：The system is engineered to minimize hydraulic oil usage while delivering maximum productivity across various job site conditions.
Versatile Compatibility with Multiple Attachments：The excavator can be fitted with augers, grabs, hydraulic hammers, and narrow buckets, allowing for efficient and diverse applications with a fast return on investment.
2.5T Mini Excavator Advantages (Rewritten without changing the original meaning)
The excavator features a simple, compact structure that allows for easy installation and straightforward maintenance.
It incorporates high-quality components from globally recognized brands in its pneumatic, electrical, and operational systems.
The design emphasizes reduced hydraulic oil consumption to ensure maximum efficiency across various job site conditions.
It supports multiple attachments—such as augers, grabs, hydraulic hammers, and narrow buckets—making it highly efficient and versatile.
Offers low investment costs with a fast return on investment.
HT25 2.5T Mini Excavator Parmeter
Machine Size | |
Overall dimension (L*W*H) | 4170mm*1300mm*2280mm |
Axle base(Track length on ground) | 1230mm |
Track gauge | 1070mm |
Min.Ground clearance | 230mm |
Swing radius at tail | 1180mm |
Track System | |
Maximum Travel speed | 3.5km/h |
Width of track shoe | 230mm |
Number of track shoe per side | 38pcs |
Number of upper roller per side | 0 |
Number of bottom roller per side | 4 |
Performance Parameter | |
Standard bucket capacity | 0.1m³ |
Swing speed | 12rpm |
Max. Grade ability | 30° |
Max. Bucket digging force | 15.3KN |
Max. Arm digging force | 10.5KN |
Hydraulic system pressure | 18Mpa |
Machine weight | 2500kg |
Arm length | 1000mm |
Engine | |
Emission Standard | Euro5/ EPA |
Engine Model | KUOBTA |
Power/Rotation speed | 14.1kw(20HP)2000rpm |
Optional Engine | China Laidong 22.1kw,2300rpm |
Number of cylinder | 3 |
Working Range | |
Max. Digging height | 3700mm |
Max. Dumping height | 2290mm |
Max. Digging depth | 2450mm |
Max. Vertical digging depth | 2160mm |
Max. Digging radius | 4370mm |
Min .swing radius | 2020mm |
Max. Lifting height of blade | 240mm |
Max. Cutting depth of blade | 310mm |
Boom swing angle(Left) | 75° |
Boom swing angle(Right) | 45° |
