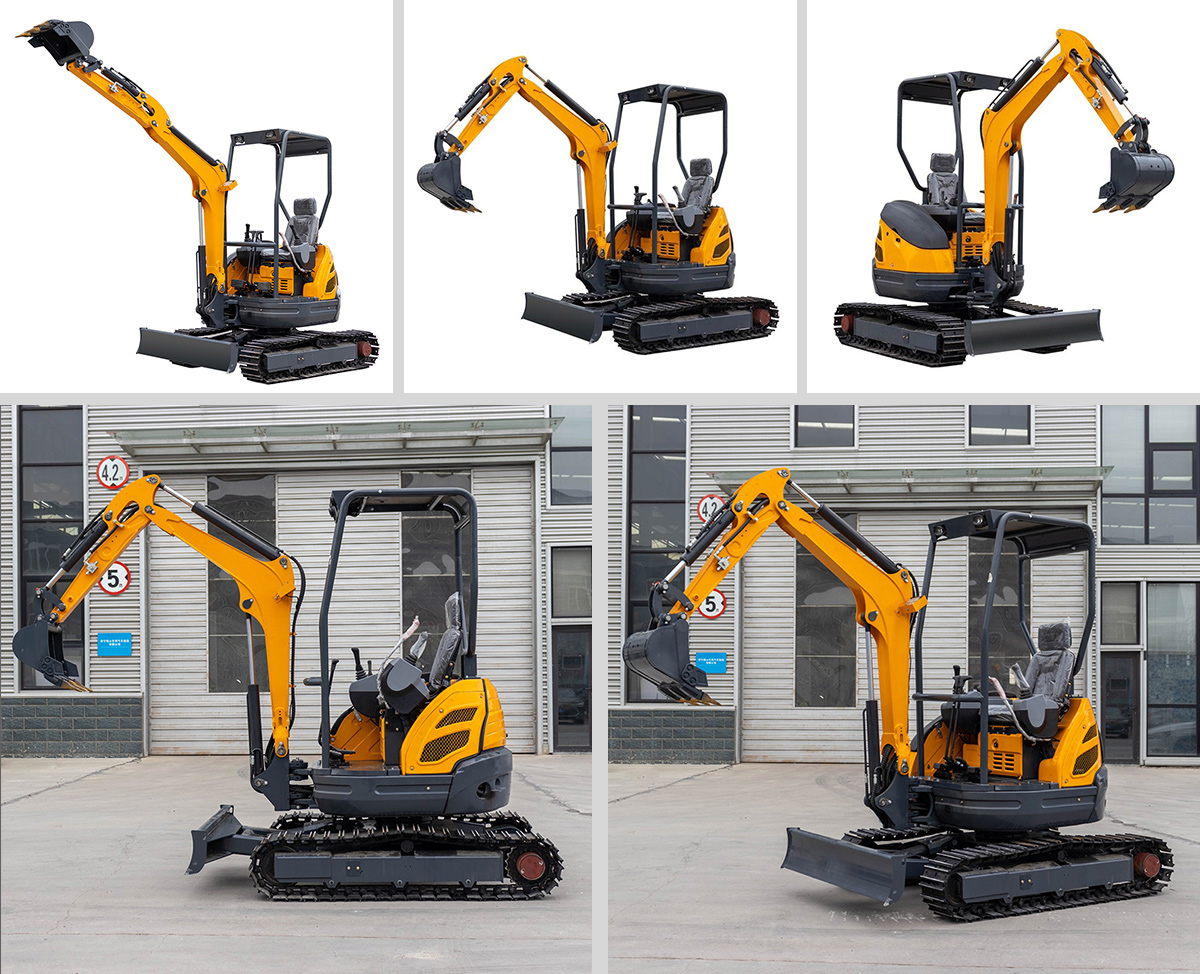

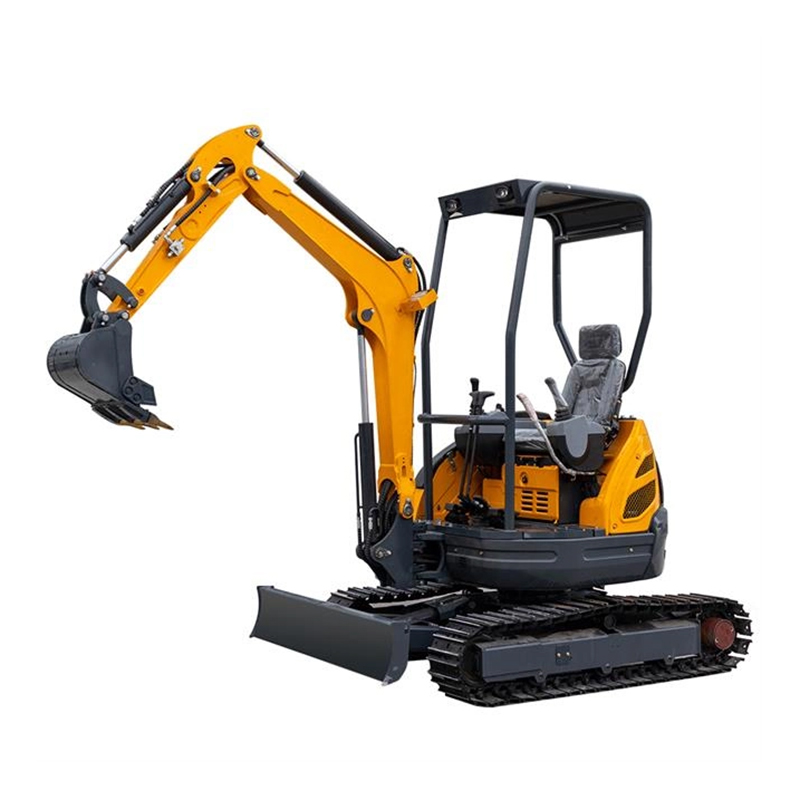

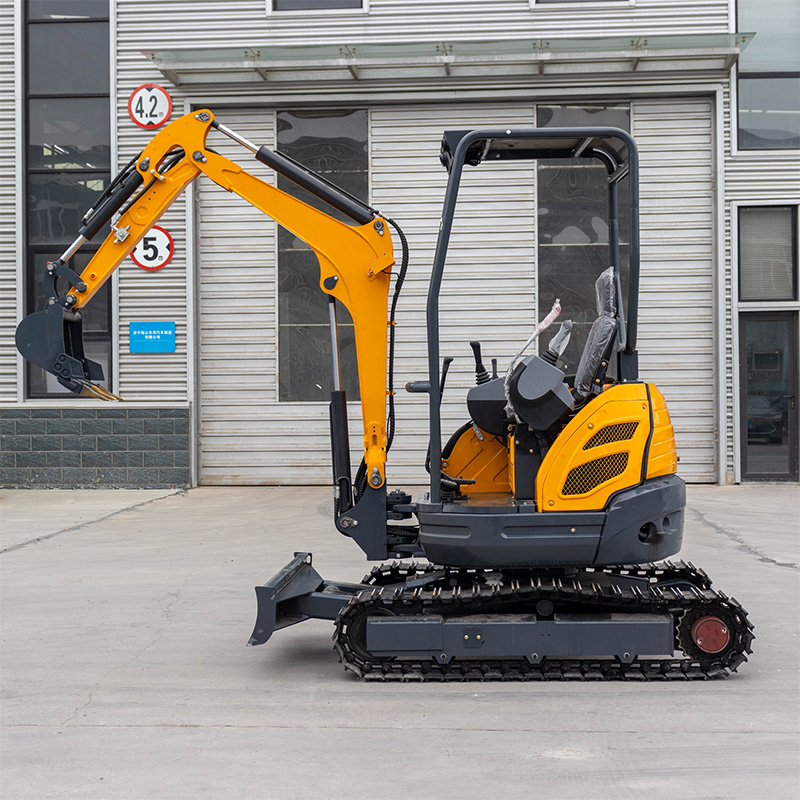

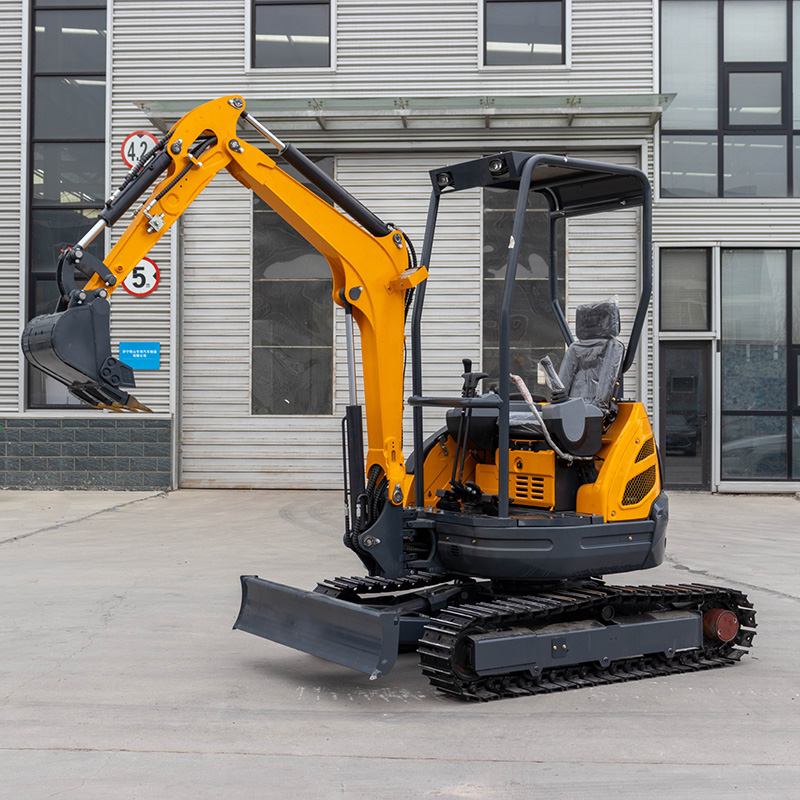

2.5 ton Mini Excavator
Highly Durable One-Piece Stamped Metal Cover：The excavator’s exterior uses sheet-metal stamping molds to achieve an integrated, one-piece structure, providing superior strength, improved durability, and better resistance to deformation during heavy-duty operation.
Stable and Long-Lasting Steel Crawler Tracks：Equipped with robust steel crawler tracks, the machine delivers excellent traction, enhanced stability on uneven terrain, and a longer service life compared to traditional rubber track systems.
Reliable Power from the Japanese Kubota 1105 Engine：Powered by a high-quality Kubota 1105 engine from Japan, the HT25 ensures dependable performance, strong fuel efficiency, and smooth operation suitable for various working conditions.
Versatile Full Hydraulic Pilot Control System：The advanced hydraulic pilot system, featuring dual pilot handles, allows precise execution of multiple functions—including bulldozing, walking, hammer operation, and side swing providing operators with greater control and versatility on the job site.
Detail Description
1. Hydraulic Three-Way Shut-Off Valve
The machine is equipped with a standard hydraulic three-way shut-off valve. Both oil circuits can be switched easily using a wrench, allowing full control of the hydraulic flow even when the pipeline is not disconnected.
2. Concealed Off-Loading Hose
The off-loading hose uses a hidden design, effectively preventing long-term exposure to sunlight. This protects the hydraulic hose from external wear and extends its service life when working in harsh geological environments.
3. Concealed Hydraulic Oil Hose
The hydraulic hose on the boom is routed through an internal structure, shielding it from direct sunlight and oxidation and improving overall durability.
4. Kubota Engine
The outer shell is formed through one-piece sheet-metal stamping, paired with steel crawler tracks. The excavator uses a Japanese Kubota 1105 engine, delivering strong and reliable power.
5. Driving Functions
Optional key power-off functionality allows the engine and power system to shut down automatically when the key is turned off, preventing battery drain and ensuring smooth starting next time. Additional features include a safety lock, key power-off system, display panel, throttle control, and hydraulic bulldozer.
6. Fully Hydraulic Pilot Operation
The fully hydraulic pilot system provides smooth control using dual pilot handles. It supports multiple functions including pushing the blade, traveling, operating a breaker hammer, and side swing. Standard features include boom side swing, pilot controls, and travel operation.
7. Machine Details
Equipped with an oil-water separator, air filter, sub-tank, and diesel filter. A service opening located behind the rear legs provides direct access to the electrical fuse box. The machine also includes a safety pedal mounted on the hydraulic footrest to ensure operator safety.
Total length/transportation length | 2870mm |
Total width | 1400mm |
Upper width | 1320mm |
Overall height (cab roof) | 2440mm |
Standard track plate width | 250mm |
Track gauge | 1150mm |
Minimum ground clearance | 145mm |
Tail turning radius | 700mm |
Track ground length | 1480mm |
Track length | 1858mm |
Working mass | 2150kg |
Bucket capacity | 0.036m³ |
Rated power | 14KW/2200RPM |
Slewing speed | 12RMP |
Climbing capacity | 40° |
Maximum digging height | 3365mm |
Maximum unloading height | 2610mm |
Maximum digging depth | 2045mm |
Maximum digging distance | 3430mm |
Minimum turning radius | 1955mm |
Maximum height at minimum turning radius | 2740mm |
