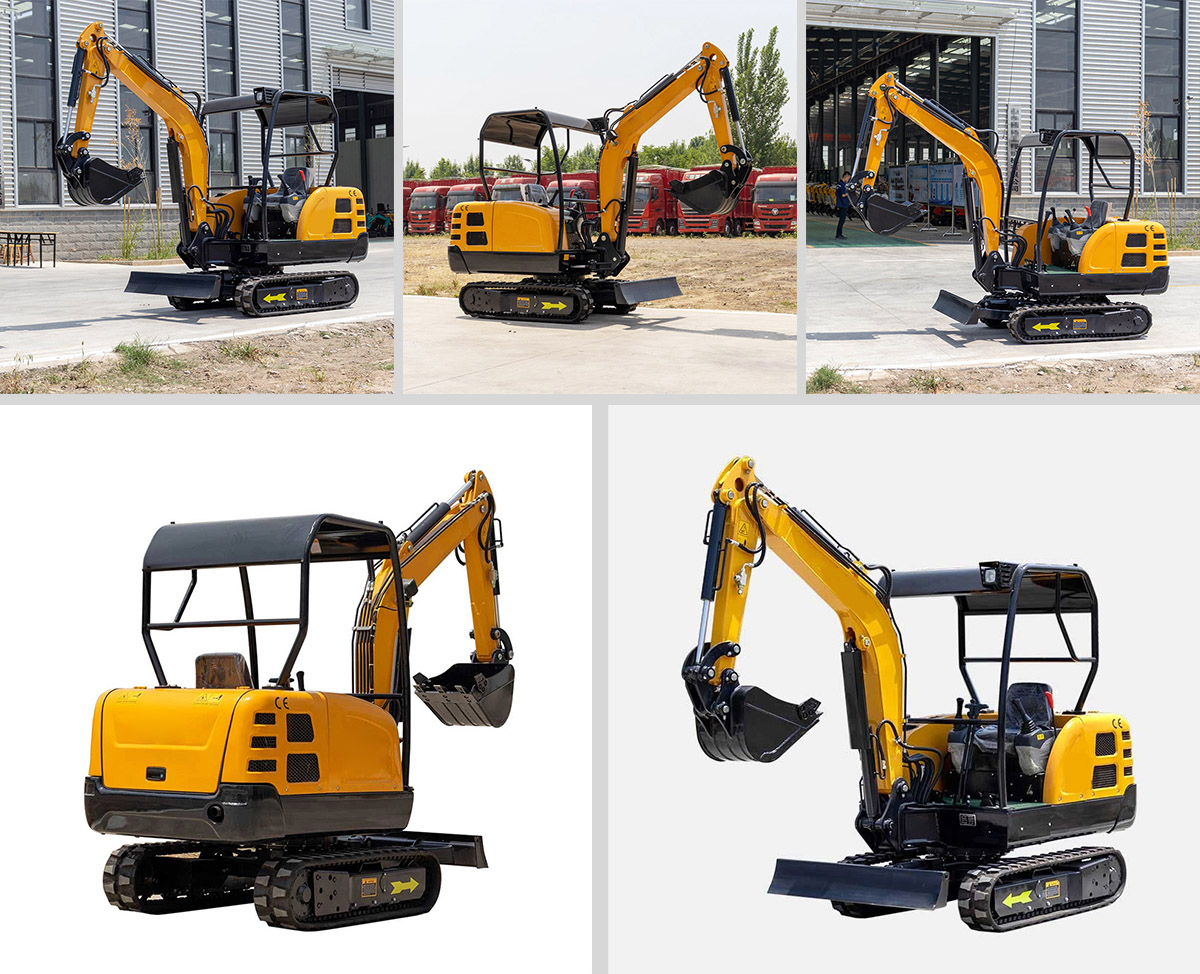

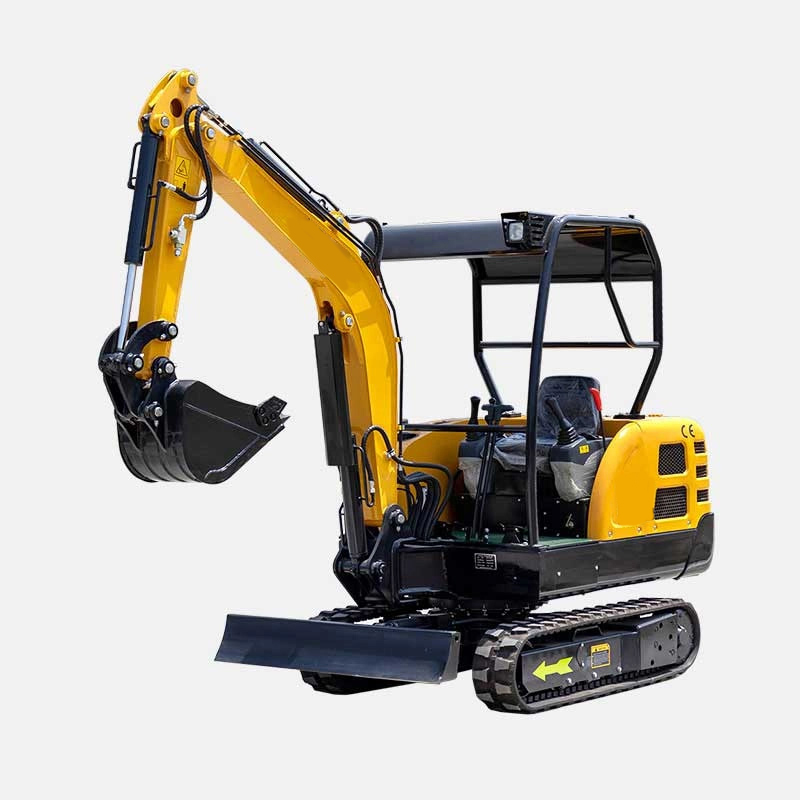

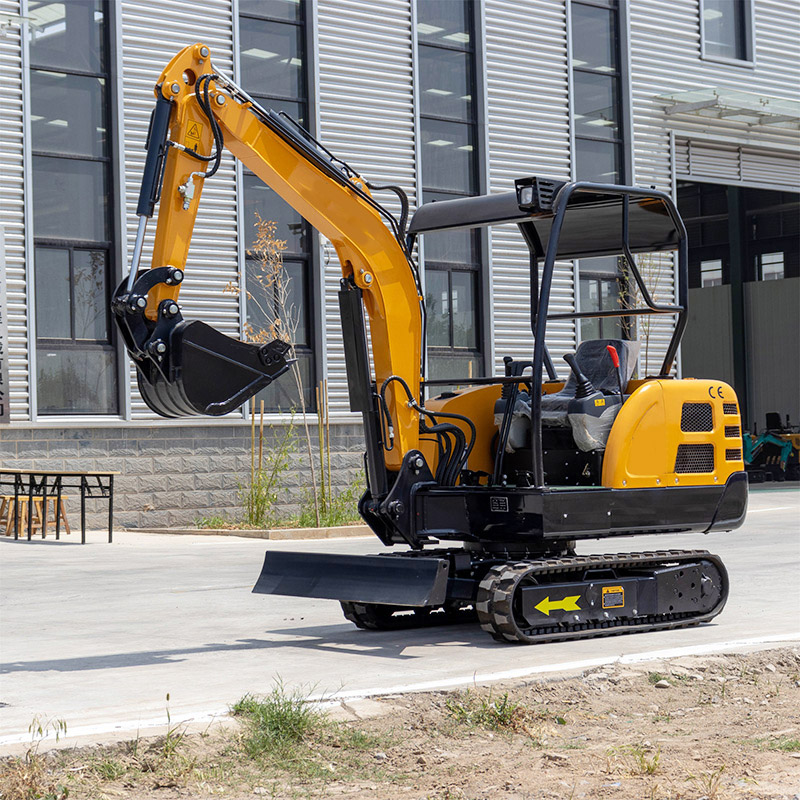

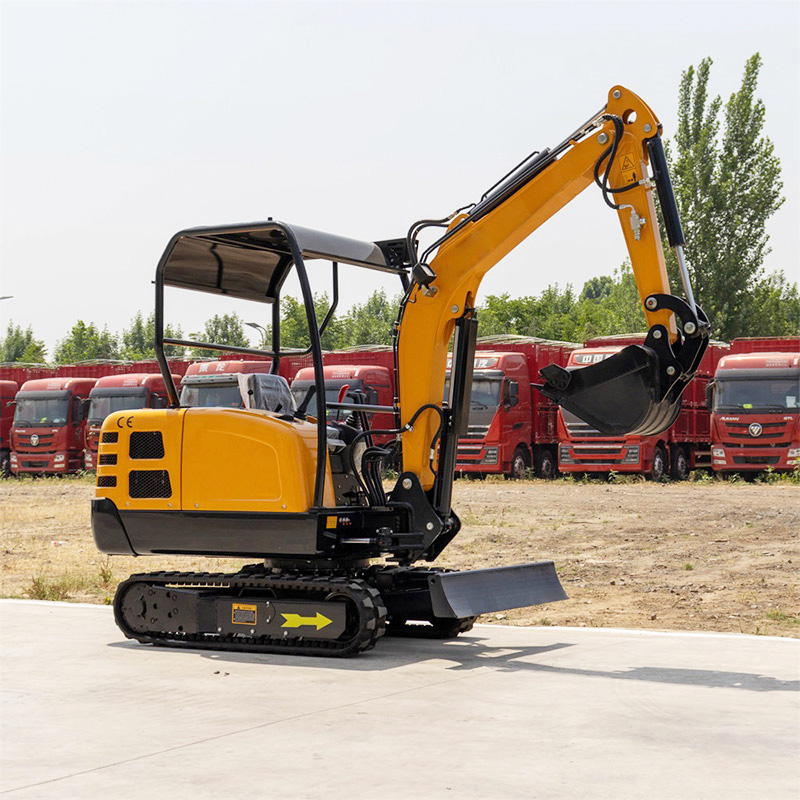

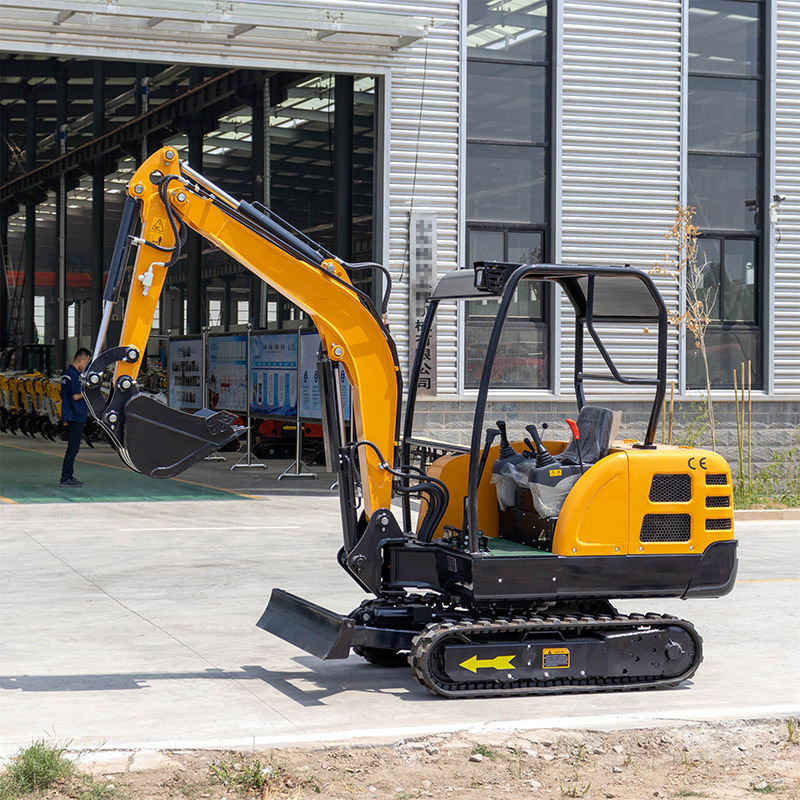

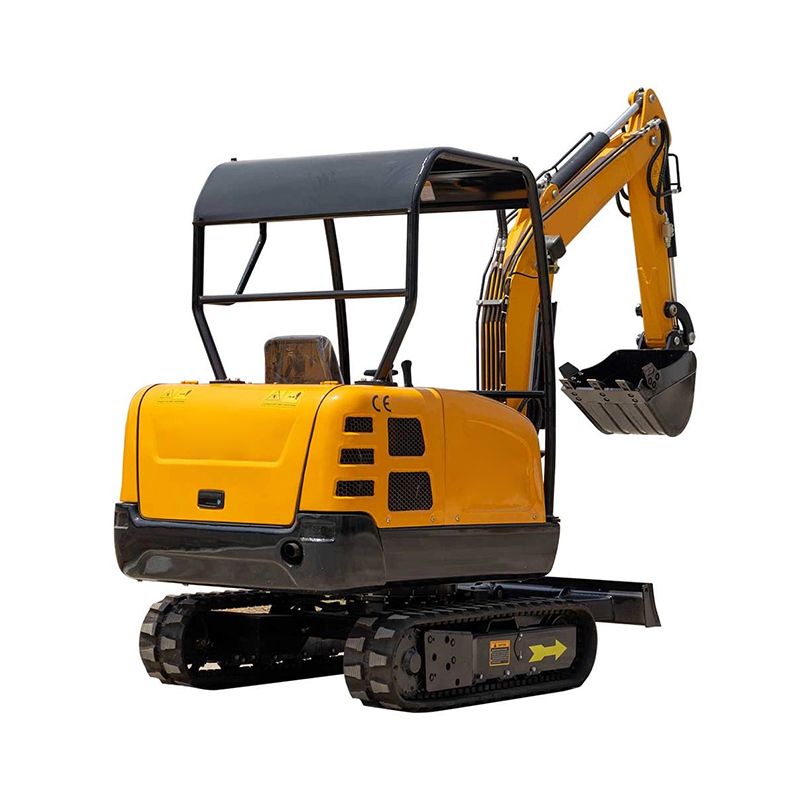

2.2 ton mini excavator
User-Friendly Operation – The mini excavator is engineered for simple, intuitive control, allowing operators of varying experience levels to handle it efficiently and with minimal learning time.
Reliable Quality and Durable Build – Manufactured with dependable components and sturdy construction, it ensures stable performance and long service life, making it suitable for continuous agricultural or construction use.
Compact Structure for Confined Spaces – Its small working radius and compact body make it ideal for operating in narrow or restricted areas where larger machinery cannot function effectively.
Wide Attachment Compatibility – The machine supports a broad range of tools—such as augers, breakers, loading buckets, and grapples—providing strong versatility for tasks including digging, drilling, loading, and material handling.
2.2-ton Mini Excavator Introduction
The 2.2-ton agricultural mini excavator features easy operation and dependable performance. It is independently designed, with a sprayed surface finish that provides an attractive appearance. Its compact working radius allows it to operate efficiently in confined spaces. It supports a wide variety of attachments—such as rotary drilling tools, breakers, loading buckets, and grippers—making it suitable for multiple tasks.
This mini excavator is ideal for agricultural orchards, greenhouses, and similar environments. It can also be used for indoor demolition, basement work, and other limited-space applications. It offers simple operation, low maintenance costs, and stable, reliable equipment performance.
2.2ton mini excavator Paramete
Machine Size | |
Overall dimension (L*W*H) | 3865mm*1050mm*2270mm |
Axle base(Track length on ground) | 1230mm |
Track gauge | 820mm |
Min.Ground clearance | 210mm |
Swing radius at tail | 1125mm |
Track System | |
Maximum Travel speed | 3.5km/h |
Width of track shoe | 230mm |
Number of track shoe per side | 38pcs |
Number of upper roller per side | 0 |
Number of bottom roller per side | 4 |
Performance Parameter | |
Standard bucket capacity | 0.06m³ |
Swing speed | 10-12rpm |
Max. Grade ability | 35° |
Max. Bucket digging force14 | KN |
Max. Arm digging force | 10KN |
Hydraulic system pressure | 18Mpa |
Machine weight | 2200kg |
Arm length | 1000mm |
Engine | |
Engine Model | Laidong 3TE30 18.4KW <span font-size:16px;background-color:#fcfdfe;"="" style="color: rgb(46, 48, 51)">Kubota D1105 14.2KW |
Emission Standard | Euro 5 |
Number of cylinder | 3 |
Working Range | |
Max. Digging height | 3365mm |
Max. Dumping height | 2385mm |
Max. Digging depth | 2050mm |
Max. Vertical digging depth | 1725mm |
Max. Digging radius | 3860mm |
Min .swing radius | 1720mm |
Max. Lifting height of blade | 230mm |
Max. Cutting depth of blade | 275mm |
Boom swing angle(Left) | 75° |
Boom swing angle(Right) | 45° |
