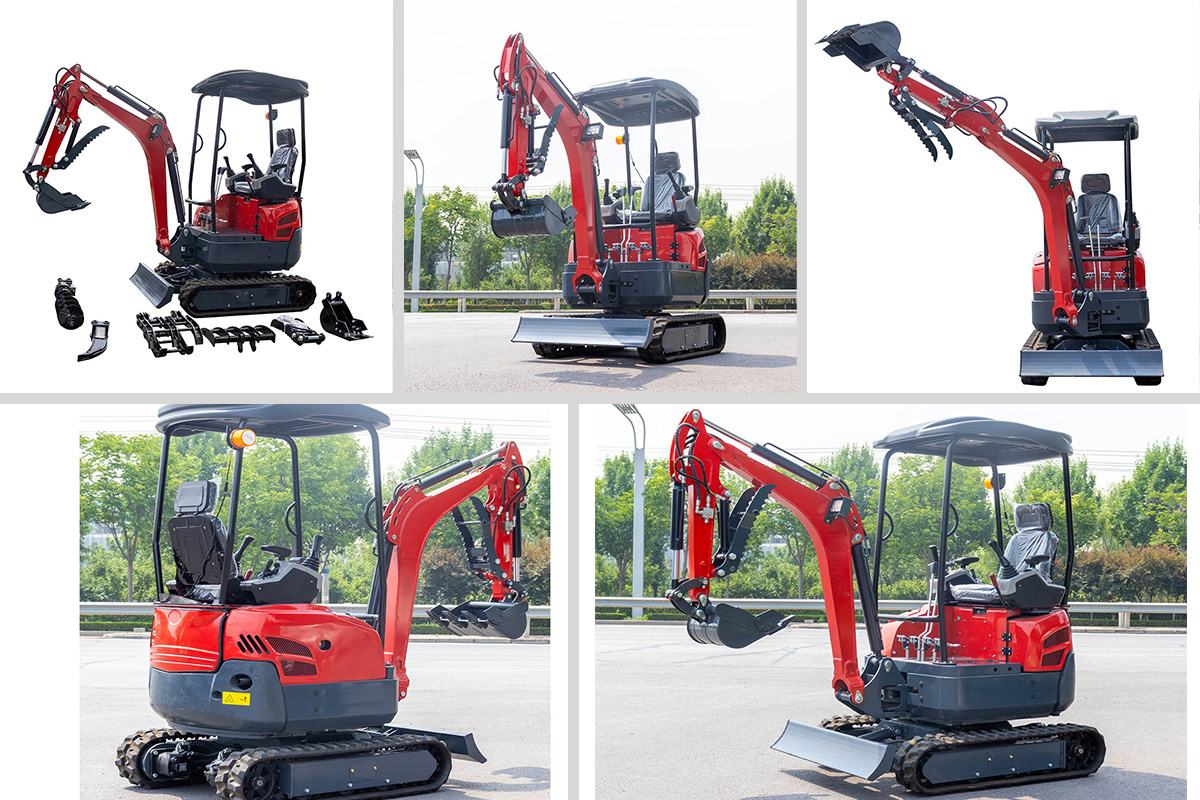

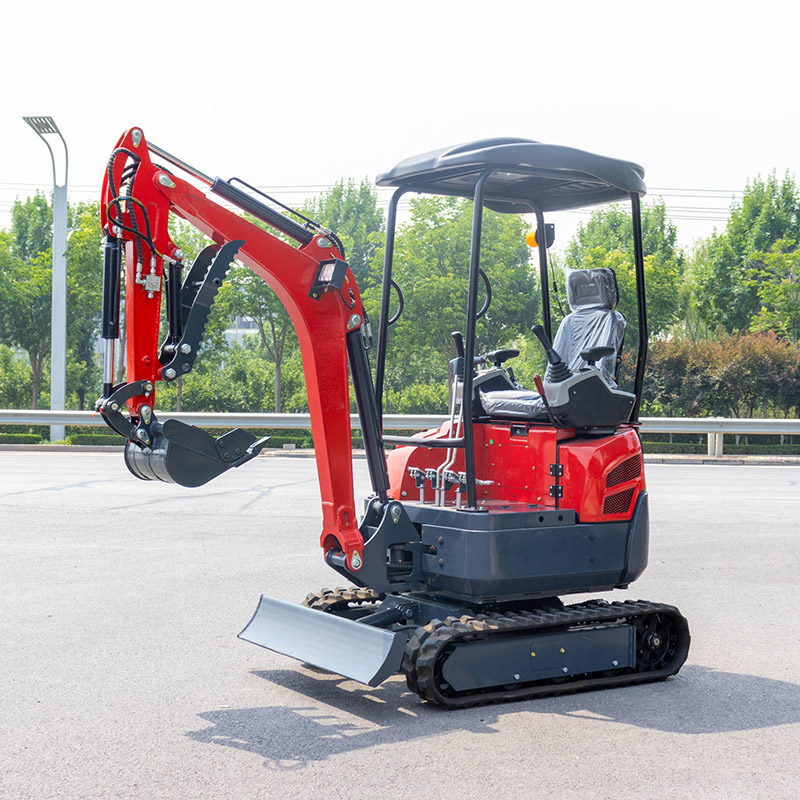

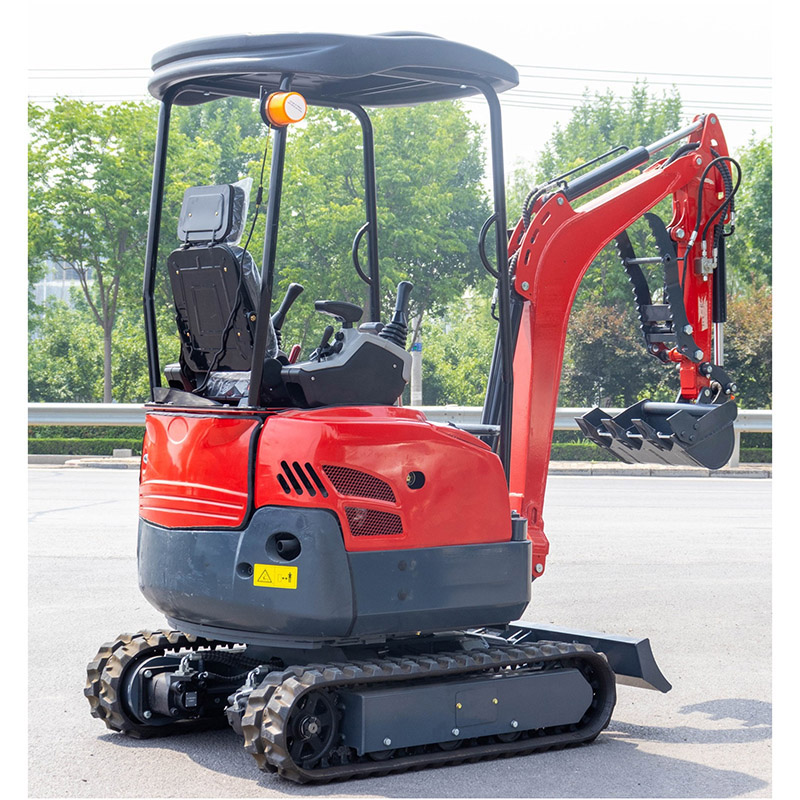

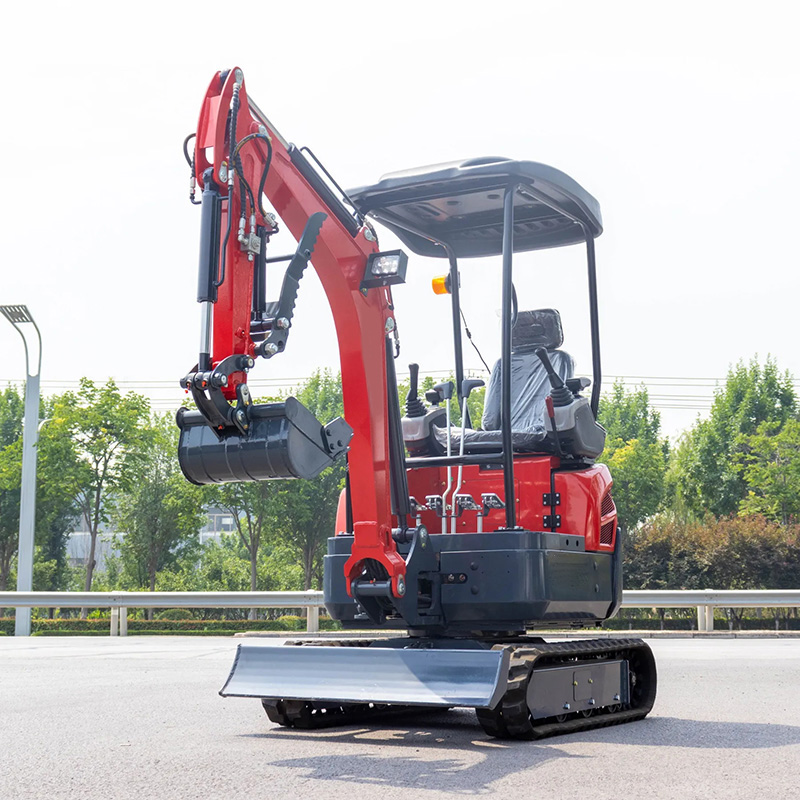

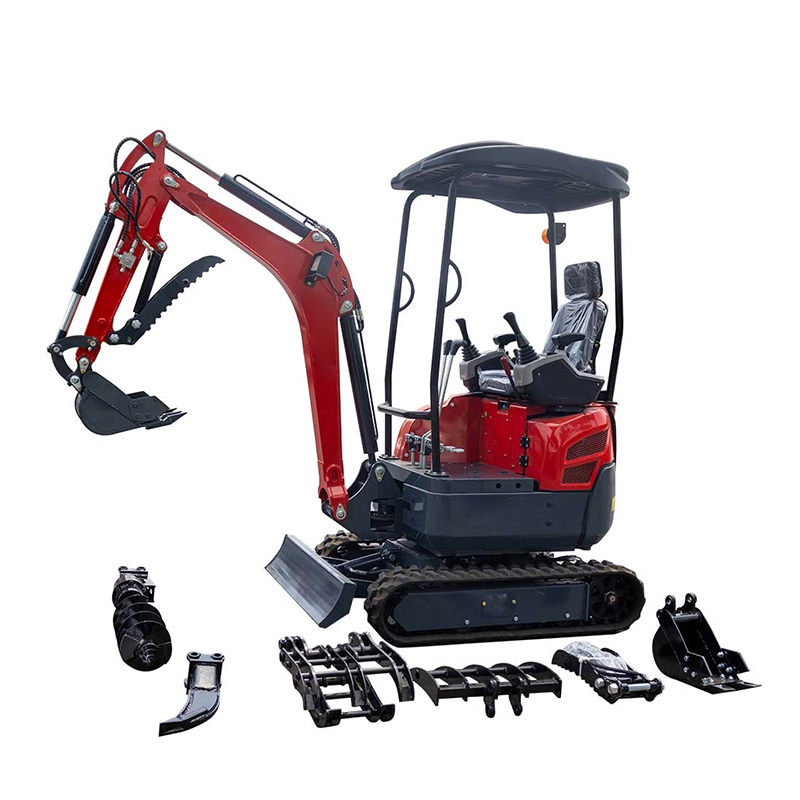

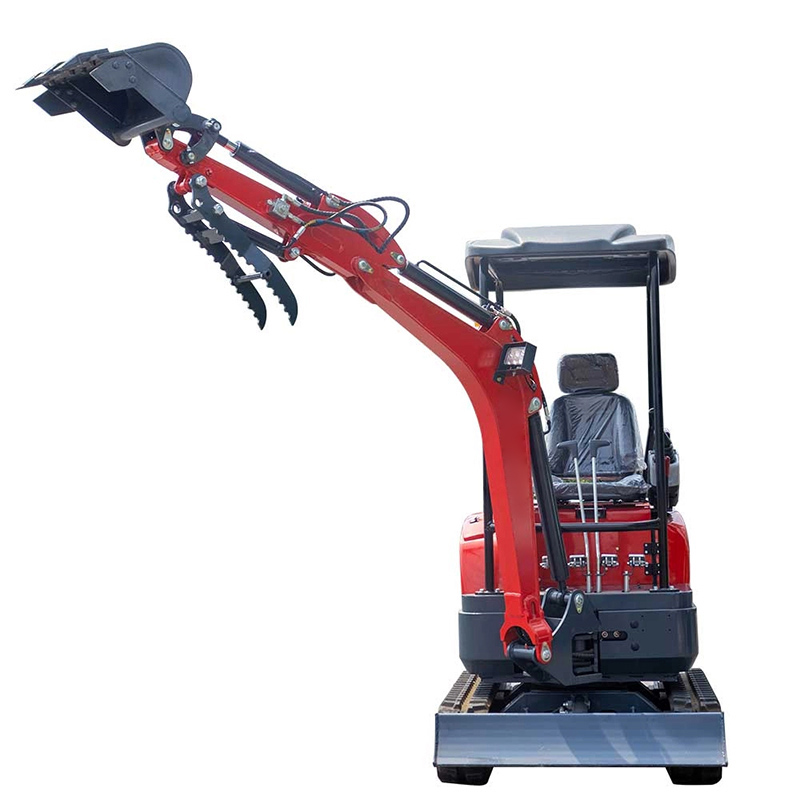

1.8T Mini Excavator Excavator
Enhanced Work Efficiency – The excavator is designed to maximize productivity by allowing operators to perform tasks more quickly and effectively.
Compact Turning Radius – Its small rotation radius enables smooth and precise maneuvering, even in tight or confined construction areas.
Obstacle-Free Operation – Operators do not need to worry about nearby obstacles interfering with the machine’s rotation, reducing operational challenges and downtime.
Improved Operator Focus – By minimizing rotational concerns, the operator can concentrate fully on bucket handling and excavation tasks, significantly increasing overall work performance.
1.8T-3 Mini Hydraulic Excavator Description:
High work efficiency: With a small turning radius, the operator does not need to worry about obstacles interfering with the excavator’s rotation in confined work areas. This allows full concentration on bucket operation, significantly enhancing overall working efficiency.
1.8T-3 Mini Hydraulic Excavator Features:
The standard configuration includes a boom side-swing function, with a swing angle of 35° to both the left and right.
The machine is equipped with a plunger motor that provides both high- and low-speed settings. Low speed delivers stronger power for climbing, while high speed is ideal for regular driving.
HT18-3 Mini Excavator Parameters
Model | 18-3 |
Engine | KUBOTA D722,KOOP 292 |
Mainvalve | BEIFANG |
Working weight(kg) | 1800kg |
Bucket capacity | 0.03m3 |
Power | 10.2kw/14kw |
Swing speed | 12RMP |
Gradeability | 30 |
Overall legnth | 4325/1655mm |
Overall width | 1100mm |
Upper width | 990mm |
Overall height | 2272mm |
Standard track shoe width | 200mm |
Track Gauge | 920mm |
Min.ground clearance | 119mm |
Tail turning radius | 790mm |
Track ground length | 1050mm |
Track length | 1545mm |
Max digging height | 2580mm |
Max.unloading height | 1637mm |
Max.digging depth | 2060mm |
Max.digging distance | 3160mm |
Min.turning radiuse | 1711mm |
Max.height at minimum turning radius | 2048mm |
Boom swing Angle(left)° | 75 |
Boom swing Angle(right) | 45 |
