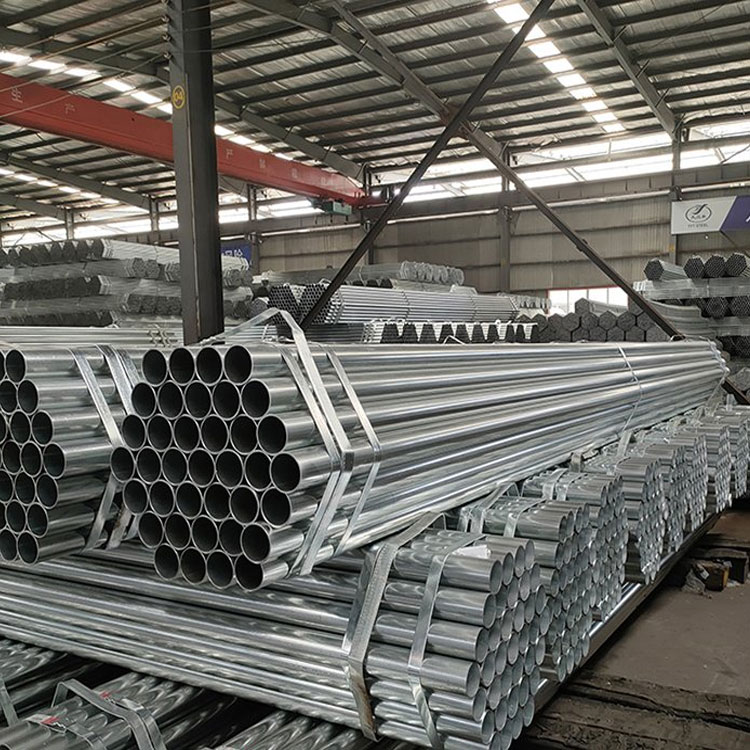

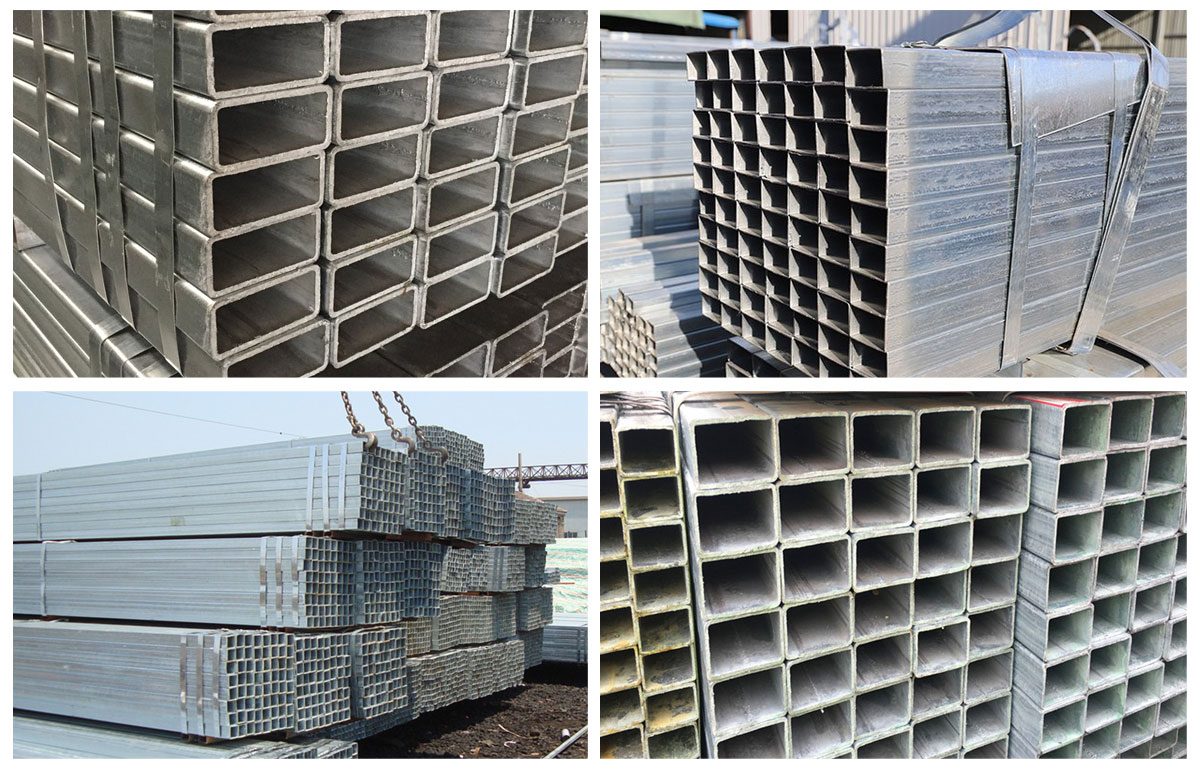

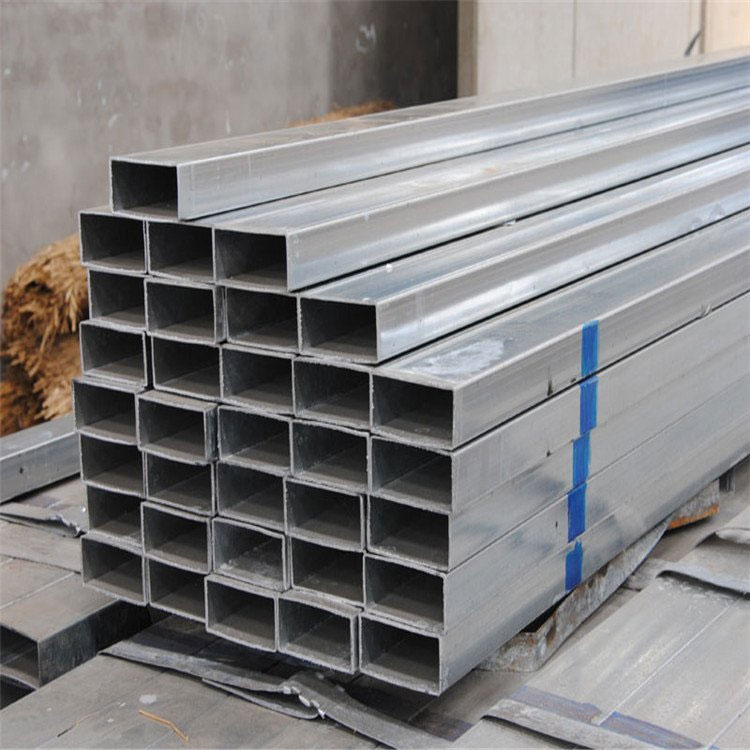

Q345 Q195 Cold Galvanized Steel Pipe
Smooth and Bright Appearance – Cold-dip galvanizing delivers a cleaner, shinier surface finish that enhances visual appeal.
Diverse Color Options – Through color passivation, the coating can appear yellow-green, bluish-white, white, greenish, or even rainbow-like under sunlight.
Uniform Electroplated Layer – The electro-galvanized process provides a consistent zinc coating, giving the steel pipe a neat and refined surface.
Cost-Effective Surface Treatment – With its thin zinc coating (10–50 g/m²), cold-dip galvanizing offers a more economical option compared to hot-dip galvanizing.
Cold-dip galvanized steel pipes are electroplated with a very low zinc coating (10-50g/m²). Their corrosion resistance is significantly lower than that of hot-dip galvanized steel pipes. The zinc coating on cold-dip galvanized steel pipes is electroplated, separated from the steel base. The zinc layer is thin and adheres only to the steel base, making it susceptible to detachment. Consequently, their corrosion resistance is poor. The use of cold-dip galvanized steel pipes as water pipes is prohibited in newly constructed residential buildings.
Cold-Galvanized Appearance
Cold-galvanized surfaces are typically smooth and bright, with coatings produced through color passivation appearing yellow-green or multicolored. The coating may also show blue-white or pure white finishes, while white passivation treatments tend to display a greenish hue. Under certain light angles, the passivated white coating can appear significantly more colorful. However, on complex-shaped workpieces, the angular sections are susceptible to "electric burning," resulting in darker, zinc-thick areas. Additionally, at inner corners, current dead zones may form, creating gray regions with relatively thin zinc layers. Overall, the surface may also exhibit zinc nodules and agglomeration on the workpiece.

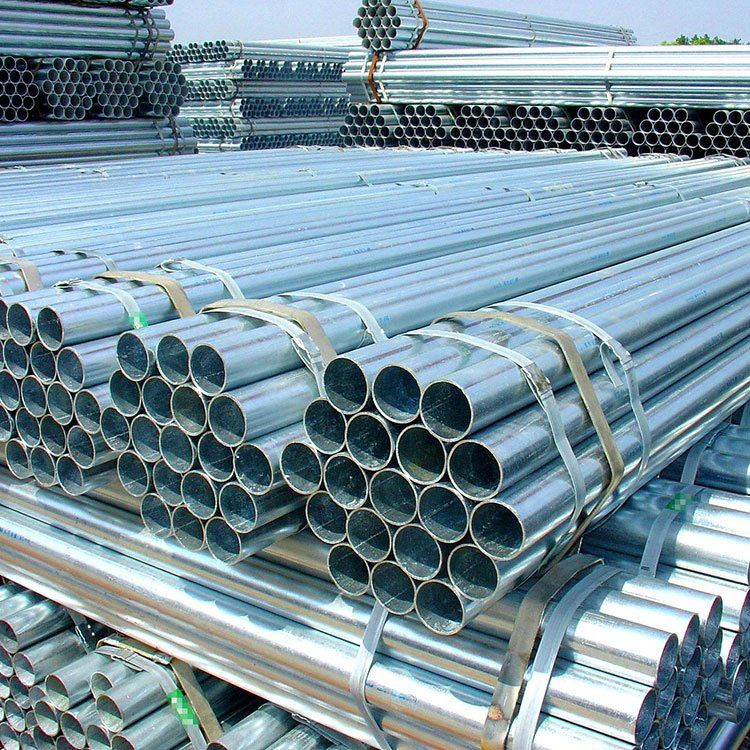

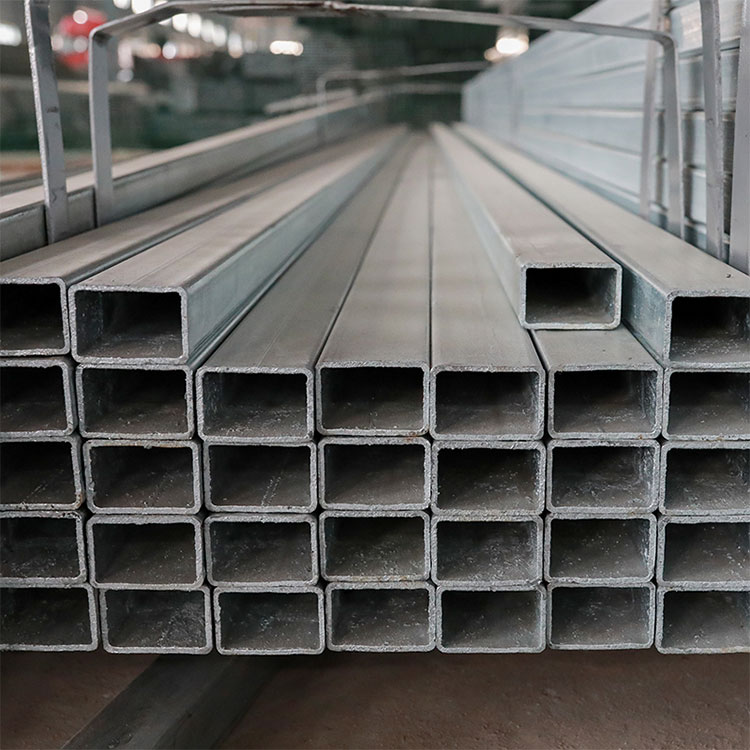

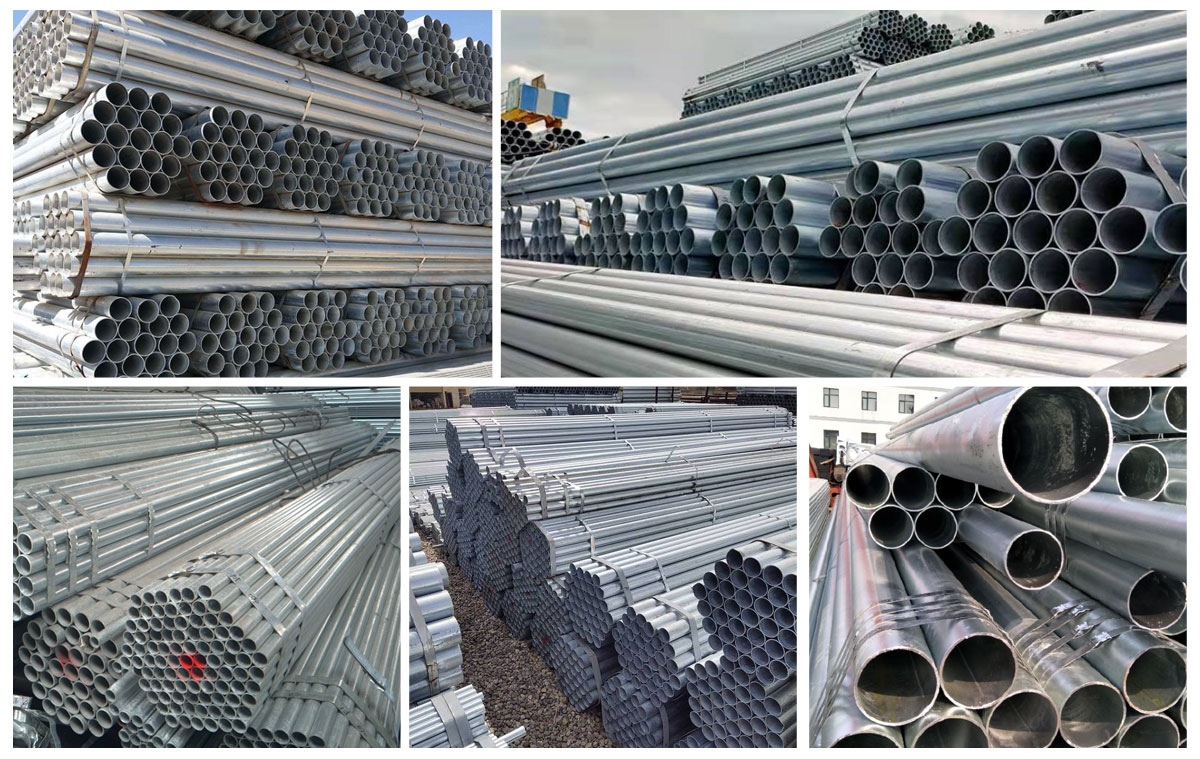

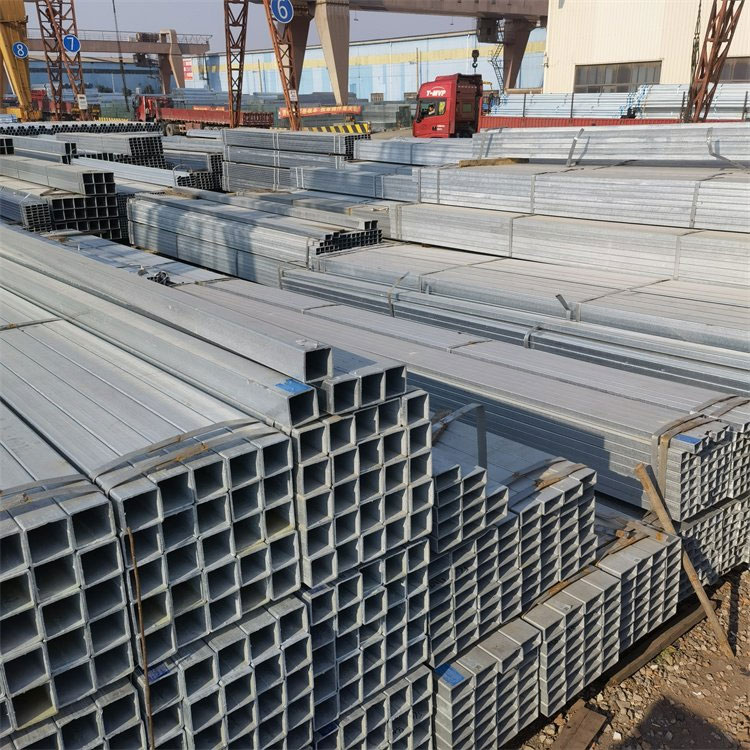

Galvanized pipes are available in various types, including galvanized round pipes, galvanized square pipes, galvanized seamless pipes, and galvanized welded pipes. Typically, ordinary galvanized steel pipes are welded (seamed) pipes, while seamless galvanized steel pipes are produced only upon special request. Seamed and seamless pipes can be distinguished by measuring their outer diameter, as their manufacturing standards differ. For example, a 100mm diameter steel pipe has an outer diameter of 114mm if welded, and 108mm if seamless.
Product name | Galvanized steel pipe |
Type | Galvanized square tube, galvanized round tube, hot-dip galvanized steel pipe, electro-galvanized steel pipe, etc. |
Grade | Q215A; Q215B; Q235A; Q235B |
Wall thickness (mm) | 2.0, 2.5, 2.8, 3.2, 3.5, 3.8, 4.0, 4.5, etc.Can be customized according to customer needs. |
Standard | GB/T3091-2015; GB/T13793-2016; GB/T21835-2008 |
Length (mm) | Cut according to customer requirements |
Nominal inner diameter | DN15;DN20;DN25;DN32;DN40;DN50;DN65;DN80;DN100;DN125;DN150;DN200;DN300, etc. |
Zinc layer | According to customer requirements |
Export packaging | Standard export packaging, also can be packaged according to customer requirements. |
Applications
Galvanized steel pipe is a welded steel pipe with a hot-dip galvanized or electro-galvanized layer on the surface. Galvanizing can increase the corrosion resistance of steel pipes and prolong the service life. Galvanized pipes are widely used. In addition to being used as pipeline pipes for general low-pressure fluids such as water, gas, and oil, they are also used as oil well pipes and oil pipes in the petroleum industry, especially in offshore oil fields, and oil heaters and condensers in chemical coking equipment. Pipes for coolers, coal distillation washing oil exchangers, and pipes for trestle piles, supporting frames for mine tunnels, etc.
FAQ
Q: About the price of the product？
A: Due to the rise and fall of raw material prices, as well as factors such as the national power restriction policy, product prices will also fluctuate. Welcome to contact us to get the latest product price.
Q: Can you arrange shipment?
A: Of course, we have multiple warehouse locations as well as regular forwarders, and can get the best price from most shipping companies. Provide professional transportation services.
Q: How long will the delivery take?
A: Products that are in stock or only need simple processing, generally 5-15 days. If there is no stock, according to the required product quantity and the usual production time of this product, our professional sales staff will give you an approximate delivery time. According to past experience, in most cases, the delivery time will not exceed 45 days.
Q: How can I get your quotation as soon as possible?
A: You can contact us through various contact channels on the website, such as: phone number, email, WhatsApp, WeChat, etc. We will reply within one day. When you contact us, you can provide us with the product specifications you need, such as size, quantity, material, drawings and other information. In this way, we will be able to provide you with the most accurate product quotation immediately.
