Q195 Q215 Carbon Steel Plate
Low Carbon Content: Contains less than 0.8% carbon, ensuring balanced strength and toughness.
Fewer Impurities: Reduced levels of sulfur, phosphorus, and non-metallic inclusions improve quality.
Better Mechanical Properties: Offers enhanced strength, durability, and performance.
Reliable Material: Provides consistent characteristics, making it suitable for structural applications.

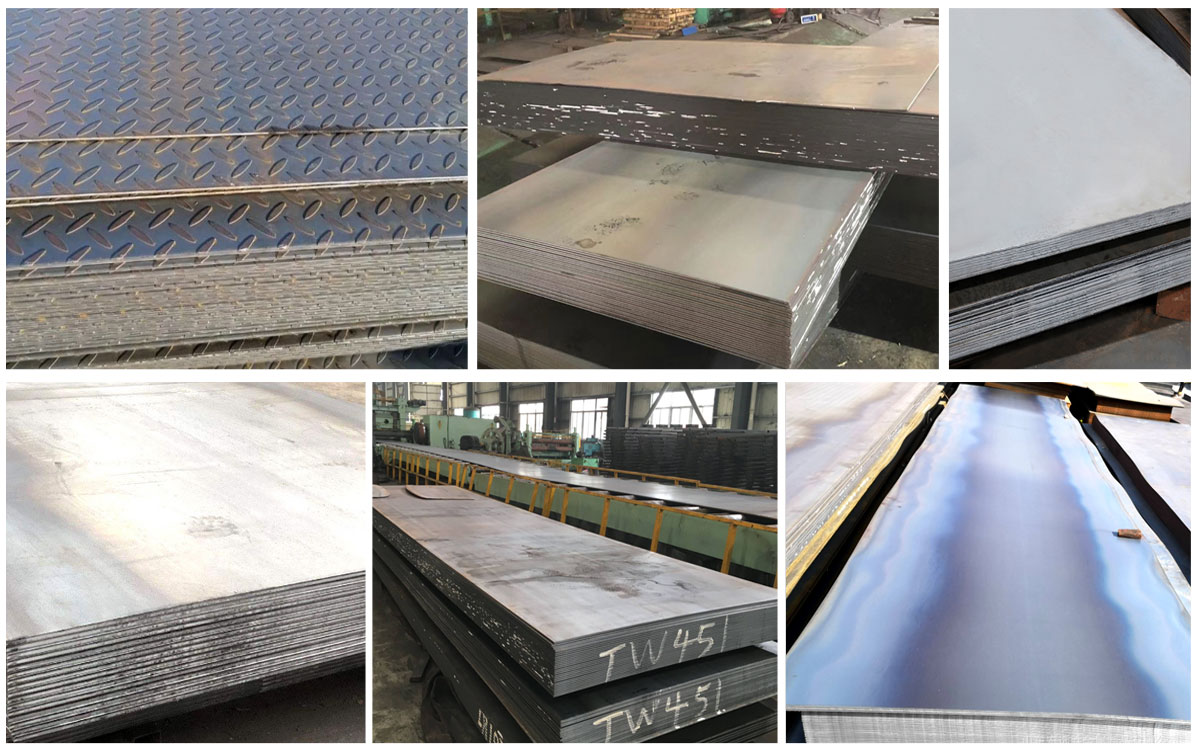

Carbon steel plate is a flat steel material that is poured with molten steel and pressed after cooling. Can be simply divided into: low carbon steel plate, medium carbon steel plate, high carbon steel plate; hot rolled steel plate, cold rolled steel plate; ordinary carbon steel plate, high quality carbon steel plate, high quality carbon steel plate; carbon structural steel plate, carbon tool steel plate ; Wear-resistant steel plate, weather-resistant steel plate, Hardox steel plate, etc.
Product Name | Carbon steel plate/ sheet |
Grade | NM360, NM400, NM450, NM500, NM550, NM600,NM700 |
Hardfacing layer | High chromium high carbide overlay |
Chemical Composition | C(%): 3.0-5.0, Cr(%): 25-40 |
Microstructure | The carbide (Cr7C3) volume fraction on the microstructure is above 50% |
Hardness | HRC |
Surface Treatment | Hardfacing,clading,coated |
Technique | Hardfacing,open arc welding,submerged arc welding |
Wear Resistance | High wear resistance,30 times higher than low carbon steel and 12 times than heat treated steel |
Impact Resistance | Medium |
Thickness tolerance | Uniform overlay thickness, with tolerance within 0-0.5mm. |
Main Thicknesses | 3+3,4+4, 5+5 |
Plate Size | Open arc welding wear plate:1400*3400mm Submerged arc welding wear plate:1400*3000mm, 1400*3500mm, 2100*3500mm. |
Product Introduction
Carbon steel, also called carbon steel, is an iron-carbon alloy with a carbon content ωc less than 2%. Generally, the higher the carbon content in carbon steel, the higher the hardness and the higher the strength, but the lower the plasticity. In addition to carbon, carbon steel generally contains a small amount of silicon, manganese, sulfur, and phosphorus.
(1) According to the purpose, carbon steel can be divided into three types: carbon structural steel, carbon tool steel and free-cutting structural steel, and carbon structural steel is divided into engineering construction steel and machine manufacturing structural steel;
(2) According to the smelting method, it can be divided into open-hearth steel and converter steel;
(3) According to the deoxidation method, it can be divided into boiling steel (F), killed steel (Z), semi-killed steel (b) and special killed steel (TZ);
(4) According to the carbon content, carbon steel can be divided into low carbon steel (ωc≤0.25%), medium carbon steel (ωc=0.25%-0.6%) and high carbon steel (ωc>0.6%);
(5) According to the quality of steel, carbon steel can be divided into ordinary carbon steel (higher phosphorus and sulfur content), high-quality carbon steel (lower phosphorus and sulfur content) and advanced high-quality steel (lower phosphorus and sulfur content) ) and super high-quality steel.
Common grades and chemical compositions of low carbon steel sheets:
Grade | Level | Chemical composition,% | Deoxygenation method | ||||
C | Mn | Si | S | P | |||
No greater than | |||||||
Q195 | - | 0.06~0.12 | 0.25~0.50 | 0.30 | 0.050 | 0.045 | F、b、Z |
Q215 | A | 0.09~0.15 | 0.25~0.55 | 0.30 | 0.050 | 0.045 | F、b、Z |
B | 0.045 | ||||||
Q235 | A | 0.14~0. 22 | 0.30~0.65 | 0.30 | 0.050 | 0.045 | F、b、Z |
B | 0.12~0.20 | 0.30~0.70 | 0.045 | ||||
C | ≤ 0.18 | 0.35~0.80 | 0.040 | 0.040 | Z | ||
D | ≤ 0.17 | 0.035 | 0.035 | TZ | |||
Q255 | A | 0.18~0.28 | 0.40~0.70 | 0.30 | 0.050 | 0.045 | F、b、Z |
B | 0.045 | ||||||
As an important category of high-performance steel, carbon steel plates have shown diversified application scenarios in energy transformation and industrial upgrading. They are widely used in the construction industry, machinery manufacturing, automobile manufacturing, shipbuilding and rail transportation, bridges, etc.Q195, Q215, Q235 steel has low carbon mass fraction, good welding performance, good plasticity and toughness, and certain strength. It is often rolled into thin plate, steel bar, welded steel pipe, etc. Used in bridges, buildings and other structures and in the manufacture of ordinary rivets, screws, nuts and other parts.
The mass fraction of carbon in Q255 and Q275 steel is slightly higher, the strength is higher, the plasticity and toughness are better, and it can be welded. It is usually rolled into section steel, bar steel and steel plate as structural parts and to manufacture connecting rods, gears and couplings of simple machinery. Sections, pins and other parts.
