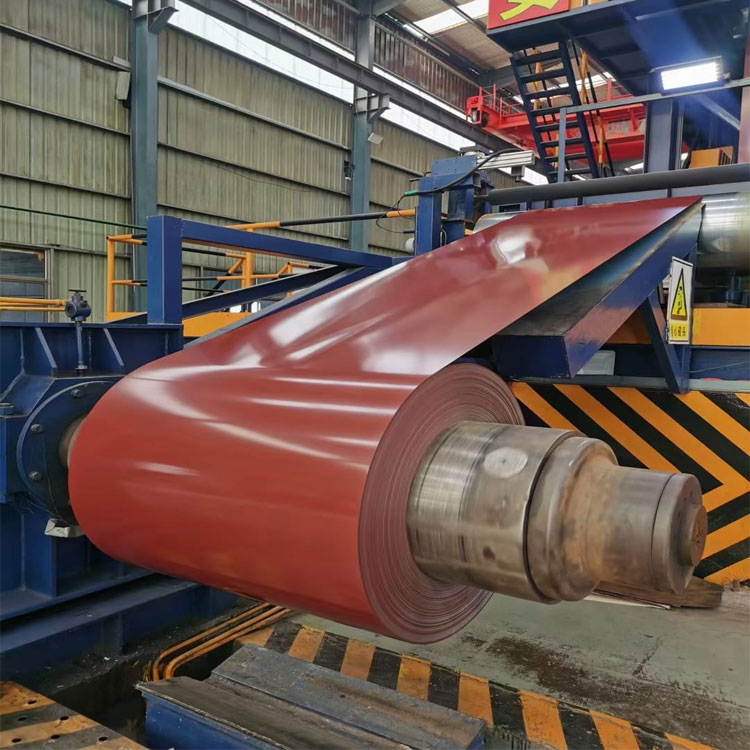

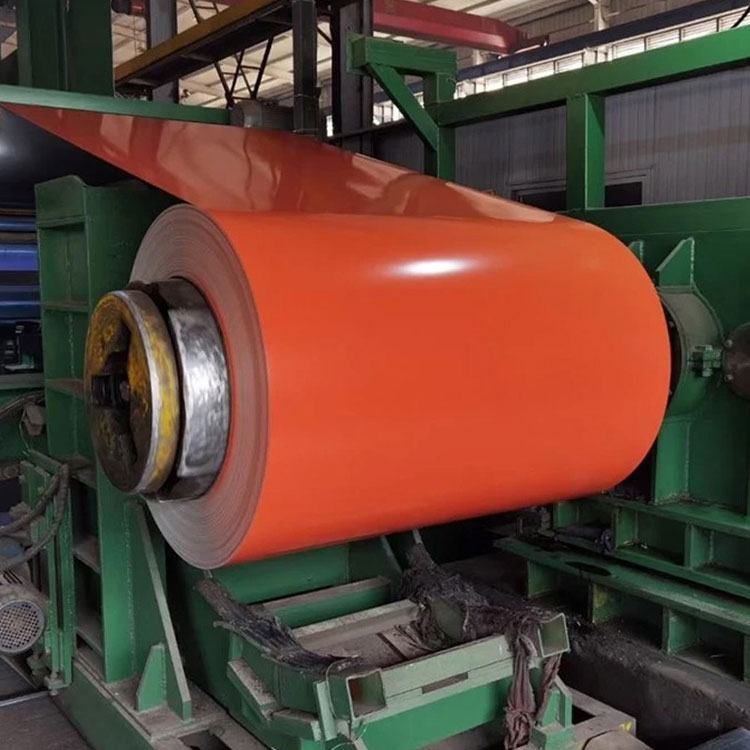

DX54D+Z PPGI PPGL Prepainted Galvanized Steel Coil
Attractive and Versatile Finish
PPGI and PPGL steel feature pre-applied colored coatings, offering a wide range of colors and an appealing surface appearance. This makes them highly versatile for both functional and decorative applications.Reliable Corrosion Protection
With surface pretreatment and organic coatings, PPGI and PPGL provide strong resistance to rust and corrosion, ensuring durability in various environments.Excellent Workability
The coated steel sheets exhibit good paint adhesion and weldability, making them easy to process and suitable for applications requiring further fabrication.Superior Durability with Al-Zn Coating
Hot-dip galvanized substrates plated with 55% aluminum-zinc deliver exceptional corrosion resistance and can last more than four times longer than ordinary galvanized steel sheets, providing a cost-effective alternative.
PPGI stands for pre-coated galvanized steel, meaning pre-coated galvanized steel. It typically refers to steel products such as PPGI coil (pre-coated galvanized coil) and PPGI sheet (pre-coated galvanized sheet). It is a galvanized coil coated with a colored coating, giving the product a rich, beautiful finish that makes it versatile. PPGL stands for pre-painted galvanized, and it is a galvanized coil coated with a colored coating. Color-coated coils primarily include hot-dip galvanized sheet, hot-dip galvanized sheet, and electro-galvanized sheet. After surface pretreatment (chemical degreasing and chemical conversion), one or more layers of organic coating are applied, then baked and cured. It is named after the various colored organic coatings applied to color-coated steel coils, often referred to as color-coated steel coils. Its corrosion resistance is inferior to that of hot-dip galvanized substrates, which are made by dipping thin steel sheets into a molten zinc bath to deposit a layer of zinc. This type of galvanized sheet, electro-galvanized sheet substrate, has a thinner coating, but offers corrosion resistance, good paint adhesion, and excellent weldability. Hot-dip galvanized substrate: The product is plated with 55% Al-Zn, has excellent corrosion resistance, and its service life is more than 4 times that of ordinary galvanized steel sheets. It is an alternative to galvanized steel sheets.
Color-coated coil materials include galvanized sheet, aluminum sheet, aluminum alloy sheet, steel sheet, nickel sheet, etc.; specifications are common 0.12-1.2mm; grades include DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+ Z, SGCC, SGCD, SGCH, etc.
Standard | JIS G3302, JIS G3313, ASTM A653, GB/T2518-88, GB11253-9, BS, etc. |
Base material | HDGI HDGL |
Thickness | 0.12-3.0mm |
Width | 100mm-1250mm or as you require |
Zinc Coating | Z20-Z275,AZ30-AZ150 |
Painting Thickness | Top side: 10-20microns |
Primer: 5~7microns | |
Back side: 5~7microns | |
Color | RAL Color |
Package weight | 3-5 ton per coil |
Inner Diameter | 508mm, 610mm |
Surface Production | PE, PVDF, SMP, HDP etc |
Packing | Each bare coil to be securely tied with two bands through the eye of coil (or not) and one circumferential. |
The contact points of these bands on the coil edge to be protect with edge protectors. | |
Coil to be properly wrapped with water proof /resistant paper, it then to be properly and completely metal wrapped. | |
Application | Construction: |
Workshop, agricultural warehouse, residential precast unit, | |
corrugated roof, roller shutter door, rainwater drainage pipe, retailer booth | |
Electrical appliance: | |
Central heating slice, lampshade, desk, bed, locker, bookshelf. | |
Furniture: | |
exterior decoration of auto and train, clapboard, container, | |
Carrying trade: | |
Writing panel, garbage can, billboard, timekeeper, typewriter,instrument panel, weight sensor, photographic equipment | |

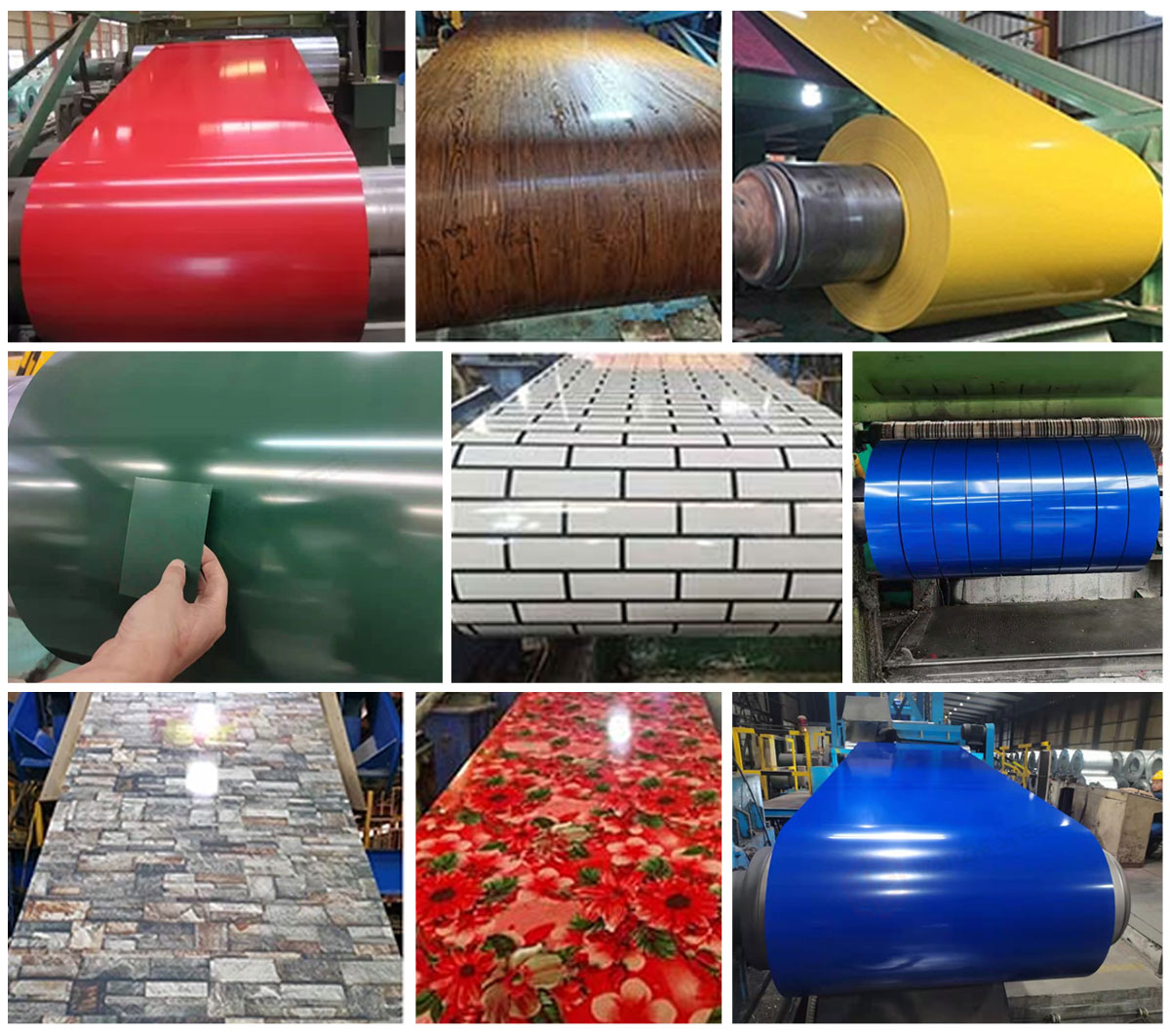

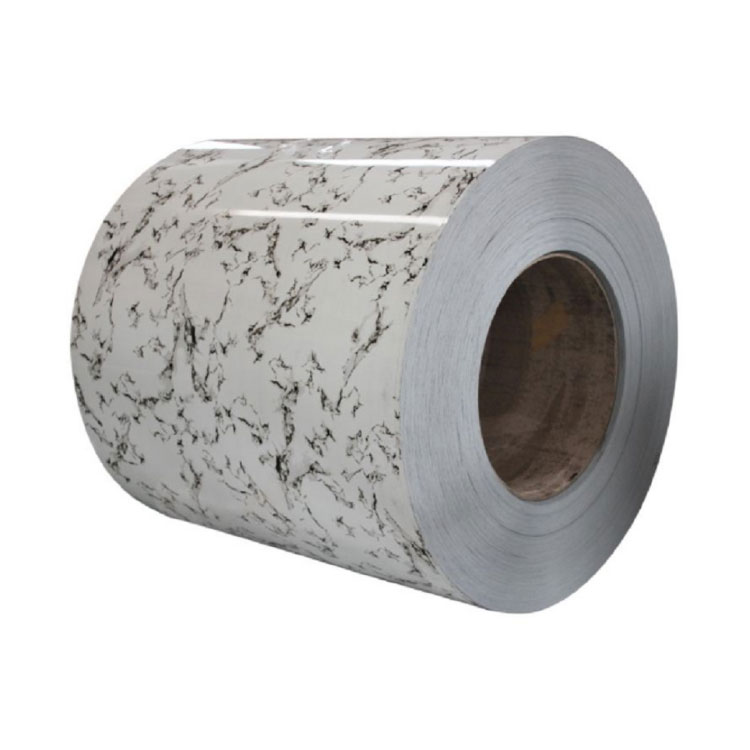

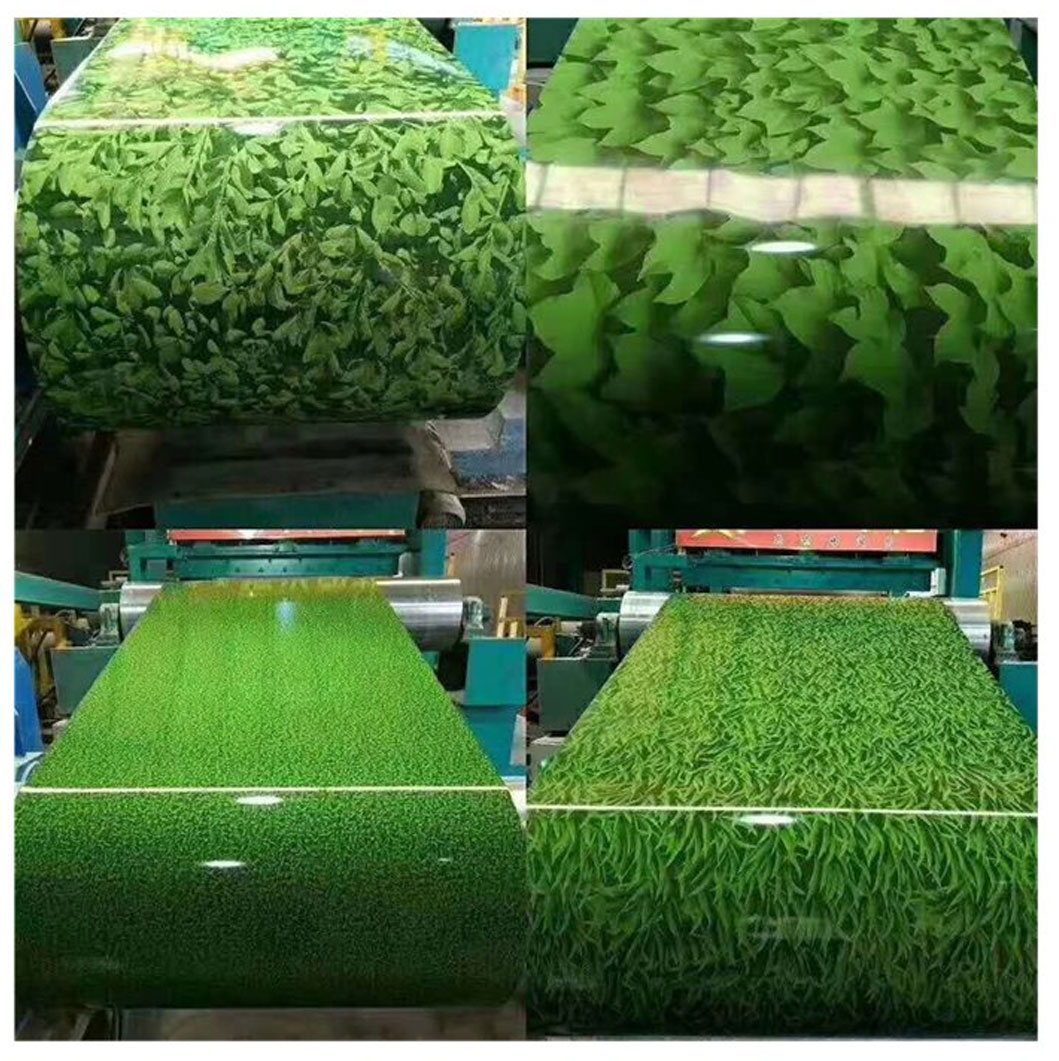

Other Surface Treatment | We can print a variety of characters, animals, landscapes, plants and other patterns on the product. For example: wood pattern, flower pattern, marble pattern, fruit pattern, camouflage pattern, etc. |
Features:
(1) It has good durability, its anti-corrosion ability and service life are longer than galvanized steel sheets;
(2) It has good heat resistance and is less likely to change color at high temperatures than galvanized steel sheets;
(3) It has good thermal reflectivity;
(4) It has similar processing and spraying properties to galvanized steel sheets;
(5) It has good welding performance
(6) It has good performance-price ratio, long-lasting performance, and is very competitive in price
Therefore, whether it is architectural designers, engineers or manufacturers, galvanized steel sheets are widely used in industrial buildings, steel structures and civil facilities such as garage doors, gutters and roofs. Polyester (PE) has good adhesion, rich colors, a wide range of formability and outdoor durability, medium chemical resistance, and low cost. Silicone-modified polyester (SMP) offers good film hardness, abrasion resistance, and heat resistance, as well as good exterior durability and chalk resistance, gloss retention, average flexibility, and moderate cost. High-durability polyester (HDP) offers excellent color retention and UV resistance, excellent outdoor durability and chalk resistance, good film adhesion, rich colors, and excellent cost-performance. Polyvinylidene fluoride (PVDF) offers excellent color retention and UV resistance, excellent outdoor durability and chalk resistance, excellent solvent resistance, good formability, and dirt resistance, but limited colors are available and the cost is high.
