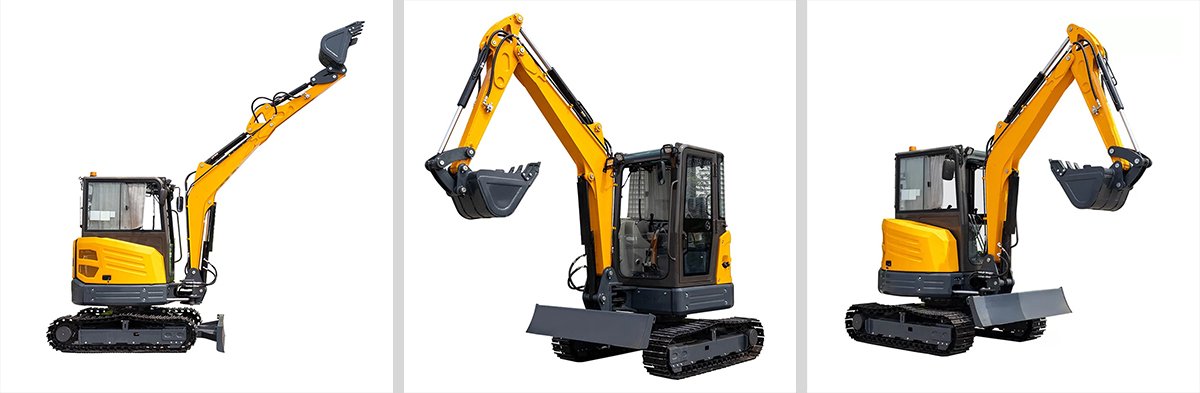

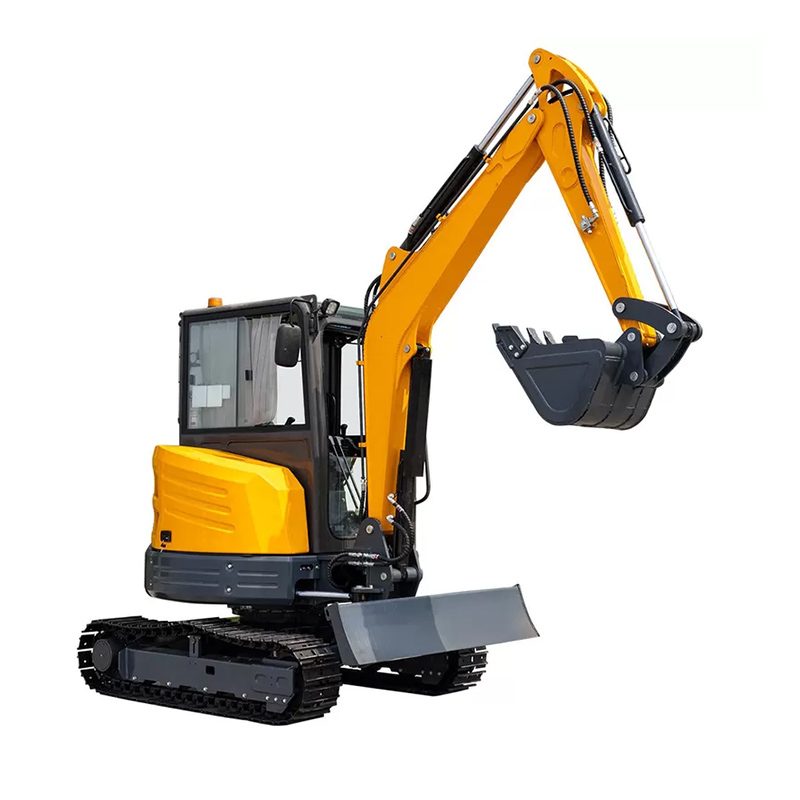

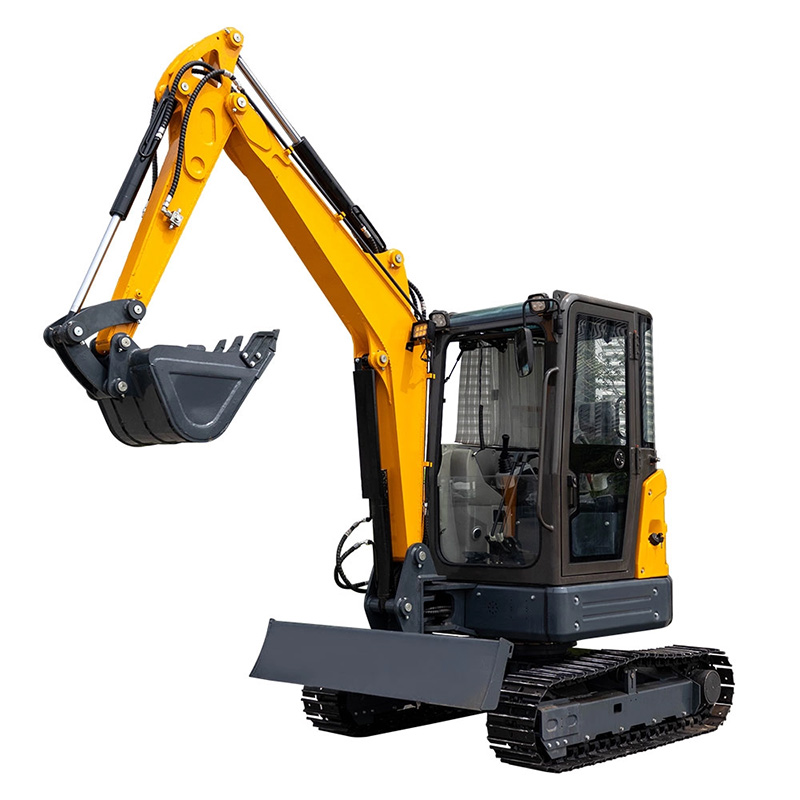

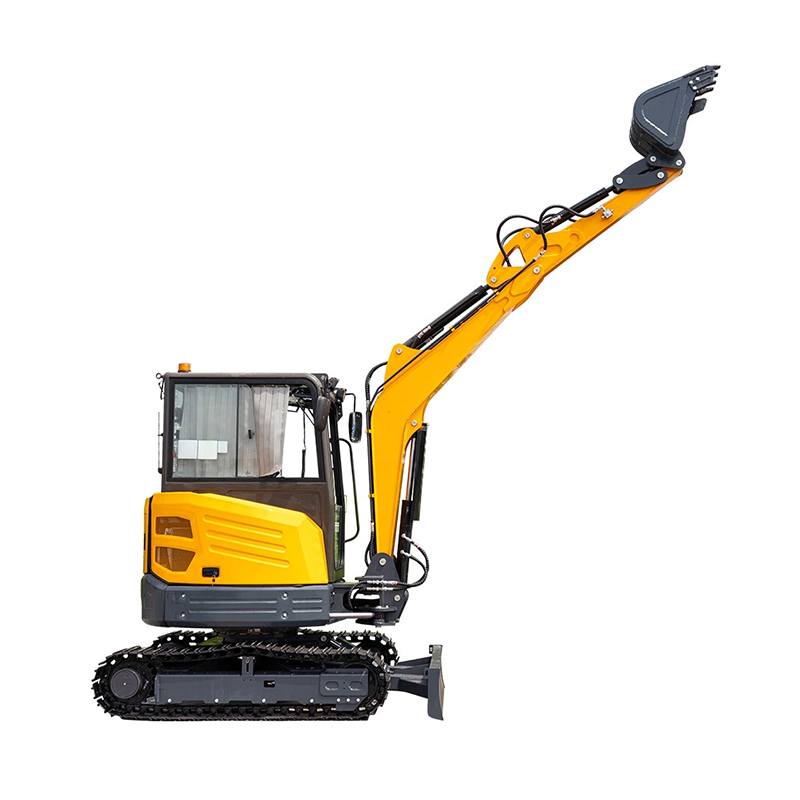

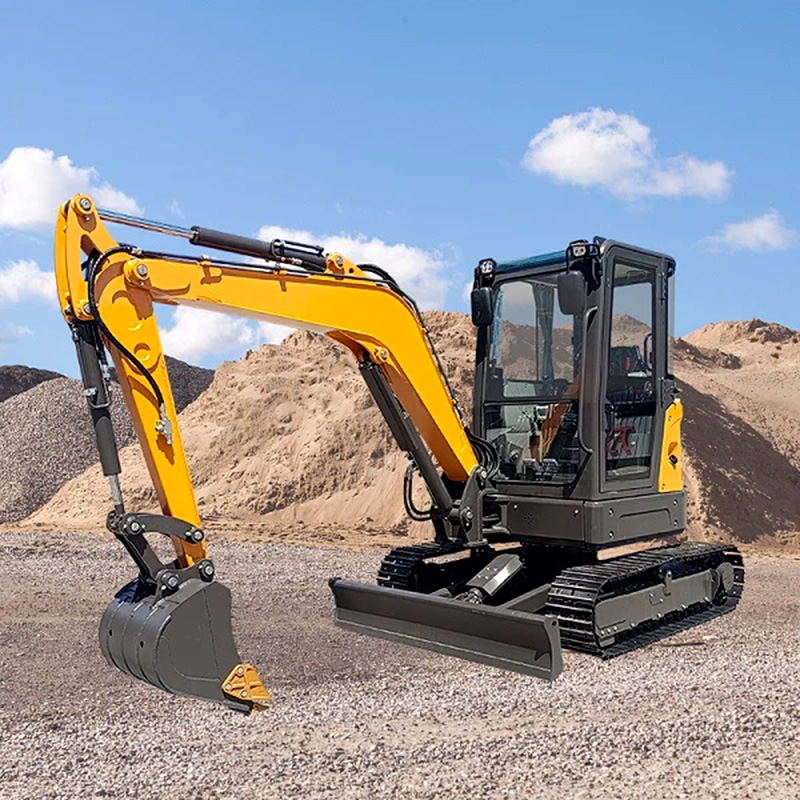

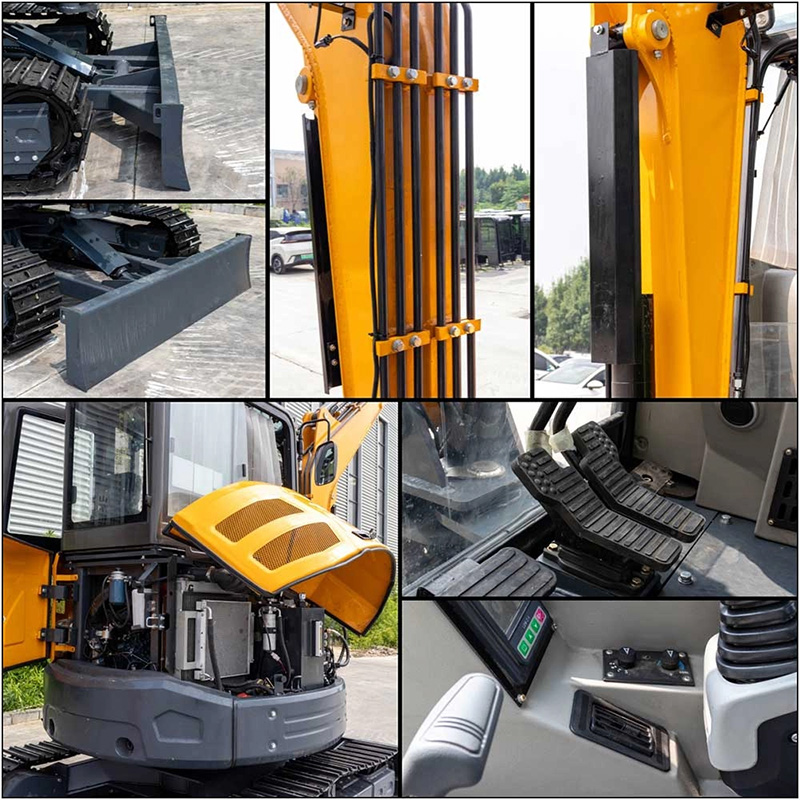

4.5T Mini Excavator 4500kg
Cost-Effective Solution: Micro excavators are generally 1/2 to 2/3 the price of medium and large excavators, making them a highly economical choice for construction projects.
Lightweight and Easy to Handle: Their compact size and low weight reduce labor requirements on site, minimizing manpower costs and simplifying project execution.
Versatile Applications: Micro excavators can efficiently handle tasks such as ditch digging, river excavation, pit excavation, loading, and crushing, making them suitable for a wide range of operations.
High Efficiency and Easy Transport: Their small size allows for quick and efficient operation with minimal manpower, and they can be easily transported on small vehicles, facilitating site-to-site movement while reducing logistics costs.

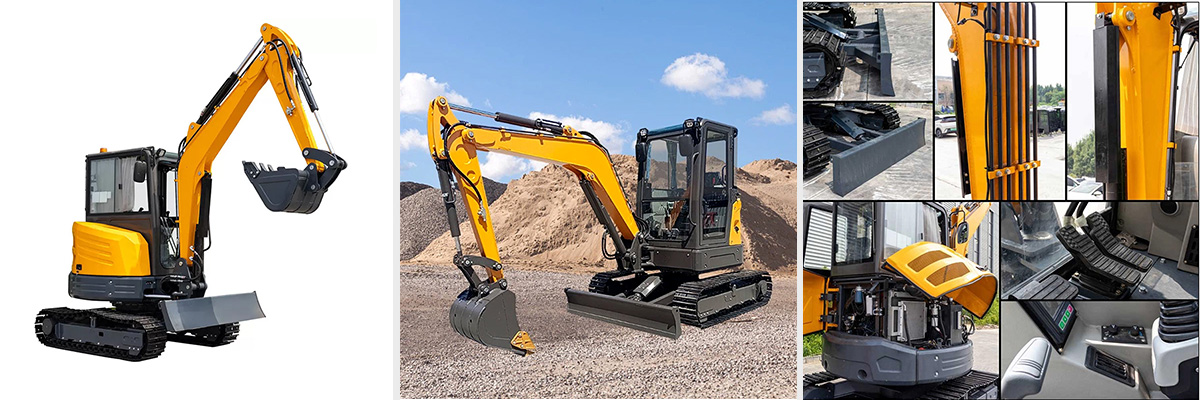

4.5T Small Excavator Features
Compact Design and Excellent Maneuverability
A key feature of the 4.5T small excavator is its compact design, specifically built to operate in tight spaces. This makes it ideal for residential projects with limited room. Its small size allows the machine to move easily around structures, trees, fences, and other obstacles, minimizing the risk of damage.
In addition to its compactness, the excavator offers outstanding maneuverability. With 360-degree rotation on its tracks, operators can work efficiently in confined areas without frequent repositioning, which is particularly advantageous in residential settings with restricted access points.
Versatility with Multiple Attachments
The small excavator’s versatility is another major advantage. It can be equipped with a variety of attachments such as digging buckets, augers for drilling, and hydraulic breakers for demolition. This allows it to handle multiple tasks across different stages of a project, from foundation excavation to landscaping.
By switching attachments, contractors can perform trenching for utilities, grading, pond digging, or stump removal with the same machine. This multi-functionality reduces the need for additional equipment, saving both time and project costs while increasing efficiency.

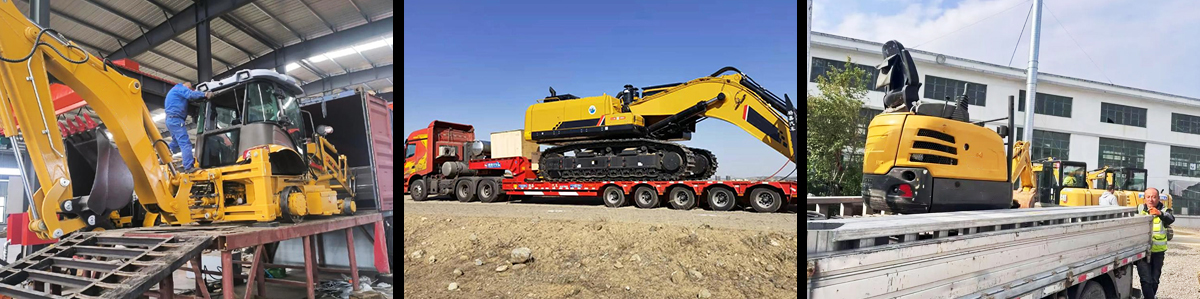

Ease of Transportation
Small excavators are also highly portable. Unlike larger machines that require specialized trailers and permits, these excavators can often be towed on a standard trailer behind a pickup truck. This is particularly useful for contractors working on multiple residential sites who need to move equipment quickly and efficiently.
Their lightweight design also lowers fuel consumption during transport, further enhancing cost-effectiveness and operational convenience.
4.5T Small Excavator Parameter
| Machine size | |
| Total length/transportation length (A) : | 5029mm |
| Total width (B) : | 1720mm |
| Upper width (D): | 1554mm |
| Total height (shed roof/cab roof) (C): | 2580mm |
| Standard track shoe width(F) : | 300mm |
| Minimum ground clearance(H): | 319mm |
| Tail turnina radius(): | 885mm |
| Track ground length(J): | 1645mm |
| Track length(K): | 2150mm |
| Bulldozer Ground height(R): | 393mm |
| Bulldozer digging depth(T): | 461 mm |
| Operating range | |
| Maximum digging height (a): | 4938mm |
| Maximum unloading height(b): | 3376mm |
| Maximum digging depth(c): | 3106mm |
| Maximum digging distance(d): | 5175mm |
| Minimum radius of turn(e): | 2634mm |
| Max. Height @ Min. Rotation Radius(f) | 371 6mm |
| Performance parameter | |
| Operating weight (KG) : | 4000kg |
| Bucket capacity M^3 : | 0.12m3 |
| Rated power : | 18.5KW/2200rpm |
| Turning speed : | 9r/min |
| Climbing ability : | 58% |
| Bucket digging force : | 30.4KN |
| Bucket rod digging force : | 1 8.2KN |
