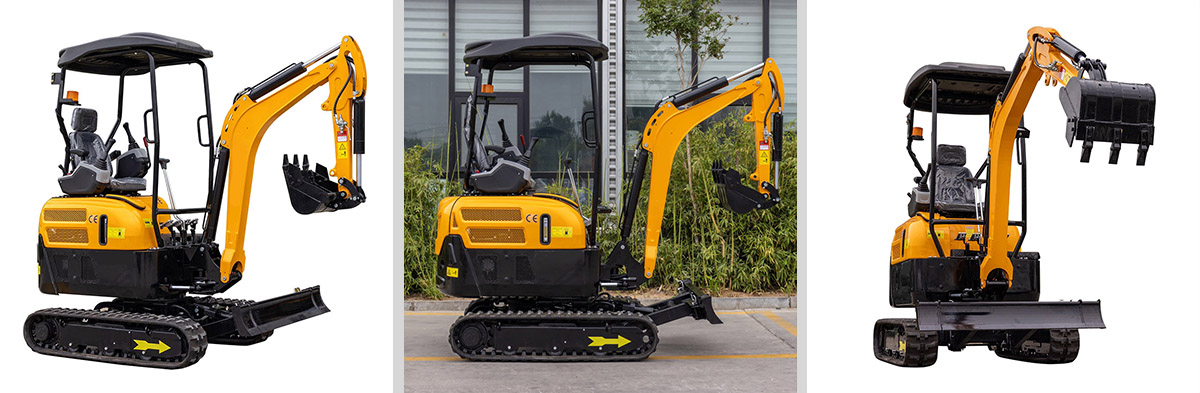

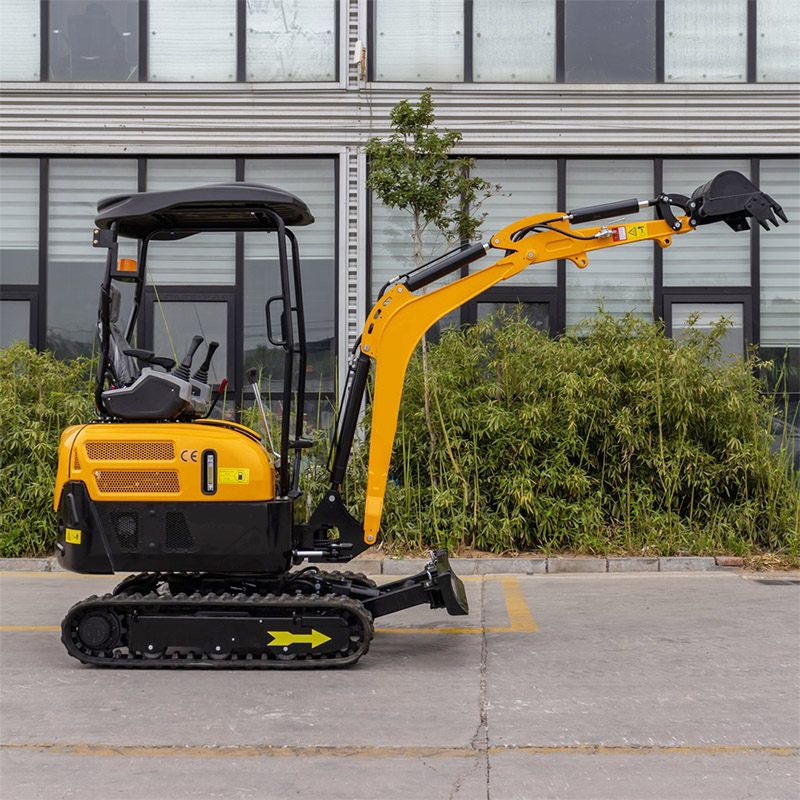

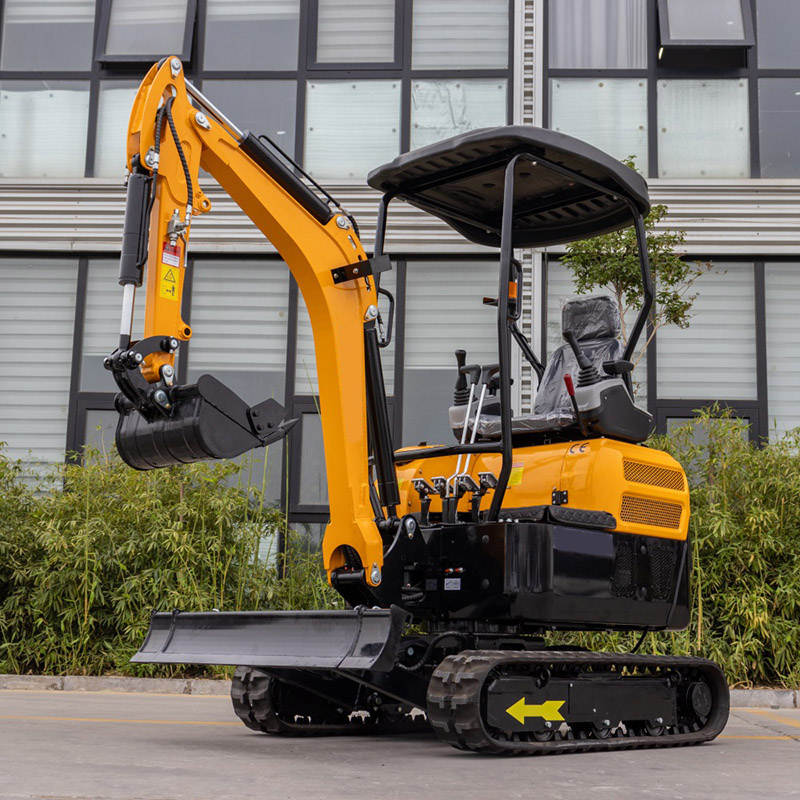

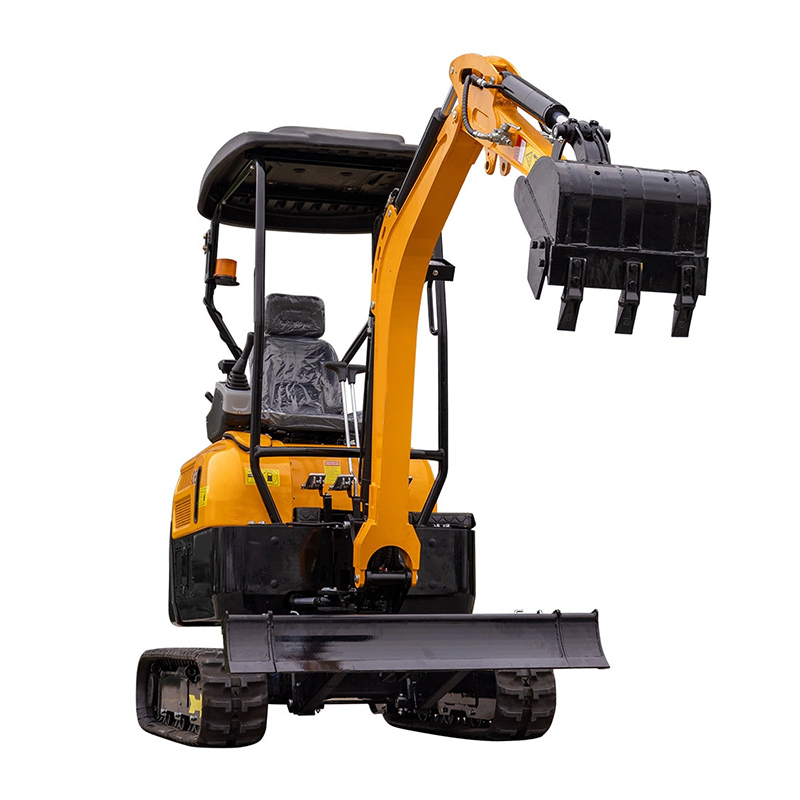

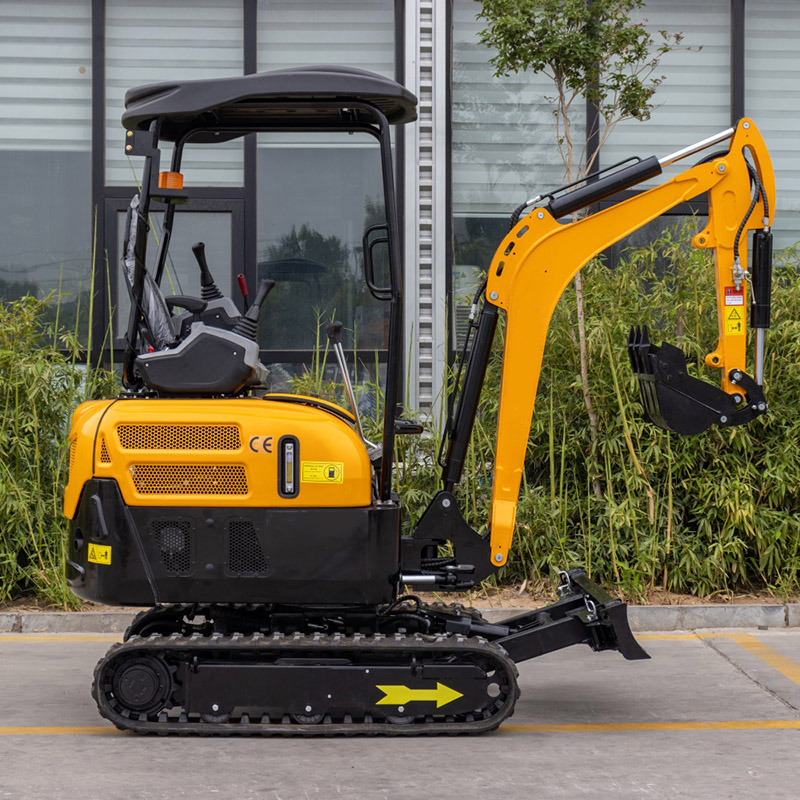

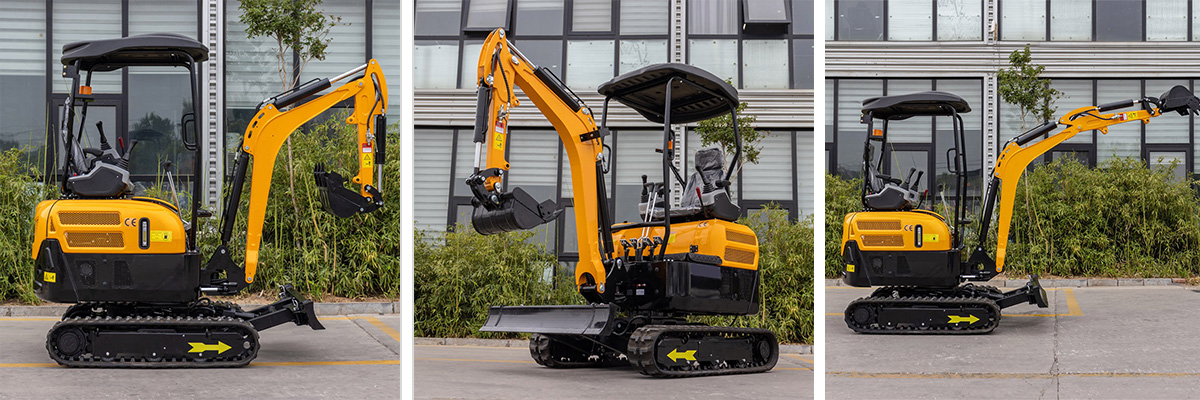

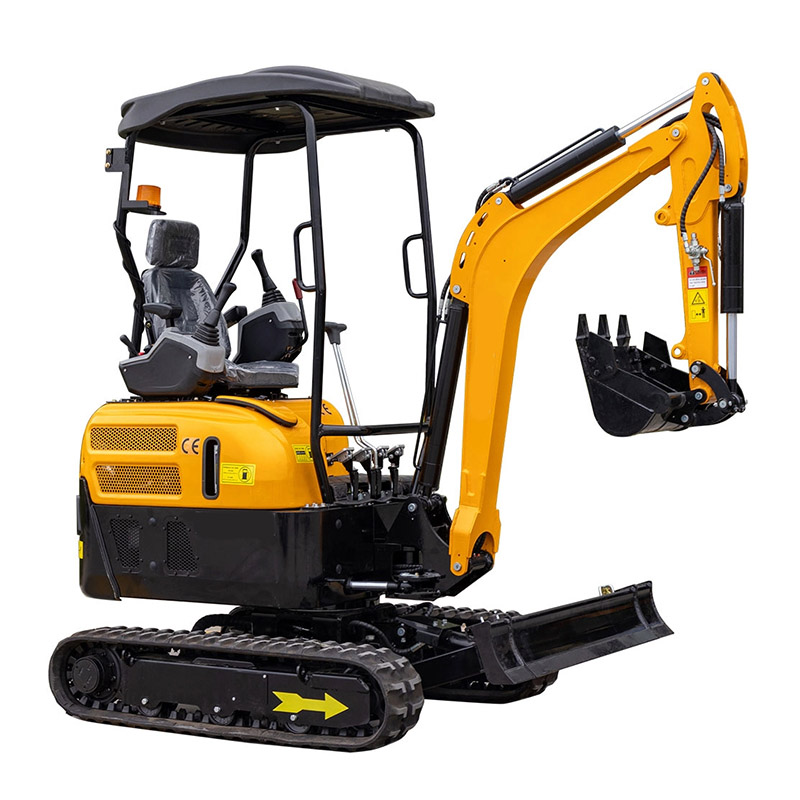

2T Pro Mini Excavator
Compact and Durable Plunger Motor: The concealed plunger motor delivers stable performance with a compact structure, making it ideal for harsh environments and long-term high-load operation.
Flexible Side-Swing Boom: The boom can swing 44° left and 45° right without moving the chassis, greatly improving maneuverability and enhancing attachment versatility.
High-Performance Control System: Equipped with an 8-way valve featuring zinc-plated actuators and cast aluminum foot pedals, ensuring precise and reliable operation.
High/Low Speed Function for Versatility: Dual-speed travel allows low speed for difficult terrain and fine control, and high speed for efficient long-distance movement.
2T Pro Mini Excavator Instruction (Rewritten Without Changing the Original Meaning)
Concealed Plunger Motor
Designed with stable performance and a compact, lightweight structure, it is ideal for tough working environments and continuous high-load operations, ensuring long-term reliable use.Arm Side Swing
Allows the bucket or attachment to move left or right without repositioning the chassis, improving maneuverability and the versatility of multiple attachments.
45° to the right
44° to the left
Short-Travel 8-Way Control Valve
Equipped with two zinc-plated actuators and four cast aluminum foot pedals for smooth and precise operation.
Handle Globe Valve
Renowned Brand Engine
Offers strong, stable, and durable performance to handle various working conditions.
Extended Inverted Boom
Enhances edge-working capabilities and provides a wider lateral digging range.
High and Low Speed Options
Low speed: suitable for complex terrain and fine control
High speed: improves efficiency during long-distance travel
2T Pro Mini Excavator Parameter
| Transportation length | 2650mm |
| Total width | 970~1270mm |
| Upper width | 1055mm |
| Overall height (cab roof) | 2350mm |
| Standard track plate width | 200mm |
| Track gauge | 770~1070mm |
| Shovel height above ground | 290mm |
| Depth of excavation of bulldozer | 285mm |
| Tail turning radius | 980mm |
| Track ground length | 1200mm |
| Track length | 1520mm |
| Engine | kubota/Laidong |
| Maximum digging height | 2875mm |
| Maximum unloading height | 1930mm |
| Maximum digging depth | 1995mm |
| Maximum digging distance | 3130mm |
| Minimum turning radius | 1670mm |
| Maximum height at minimum turning radius | 2285mm |
| Working quality | 1470kg |
| Bucket capacity | 0.025m³ |
| Working device form | backhoe |
| Climbing capacity | 30° |
| Main valve | Tengfei |
