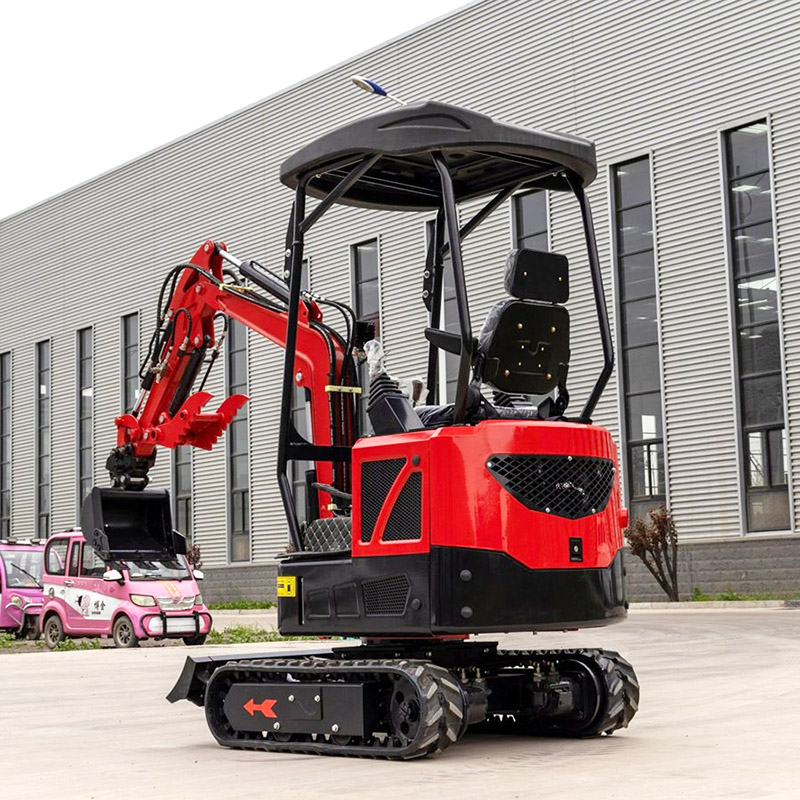

1.6T Mini Excavator

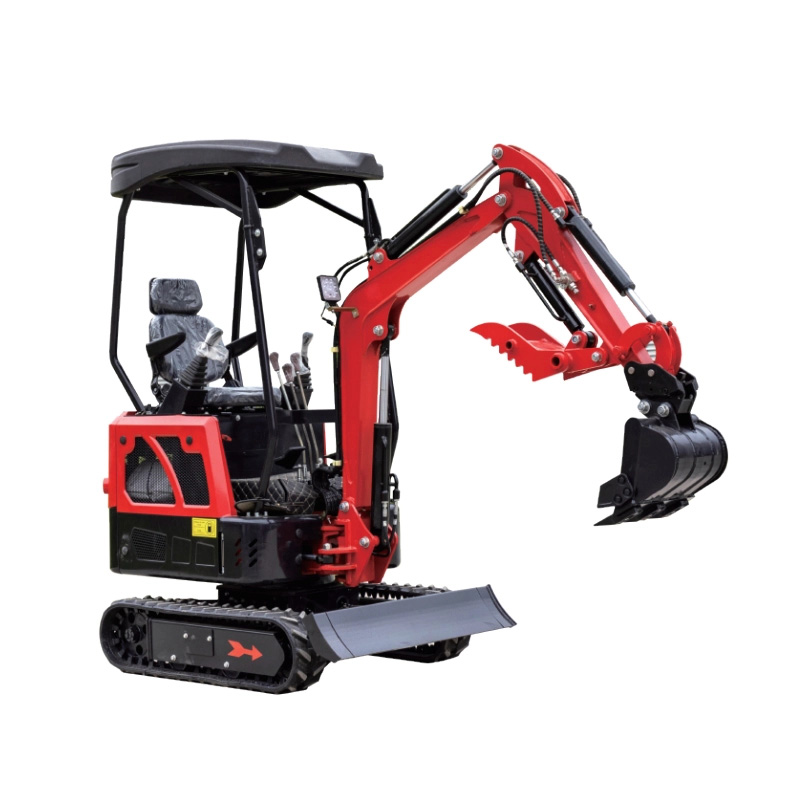

Powerful Engine and Hydraulics – Equipped with an 18.4 kW engine and optimized hydraulic system for efficient, reliable, and economical performance.
Compact and Flexible Design – Small size, light weight, 360-degree rotation, and small turning radius allow easy operation in confined spaces.
Versatile Operation – Adjustable dozer blade, easy-to-dismantle canopy, and compatibility with multiple attachments for various tasks.
High Efficiency and Reliability – Low fuel consumption, stable performance, and a matched cooling system ensure safe and continuous operation.
1.6t Mini Excavator Instruction
Engine Options: Equipped with a Japanese imported engine, with optional EPA or Euro 5 compliant models.
Compact and Versatile Design: Features a small turning radius, adjustable-height dozer blade, easily removable canopy, 360-degree rotation, compact size, and light weight for easy transport. It offers low fuel consumption, high efficiency, stable performance, and safe, reliable, and flexible operation.
Powerful Engine and Hydraulics: The 18.4 kW engine paired with an optimized hydraulic system delivers efficient, economical, and reliable performance for demanding tasks. The integrated cooling system ensures stable operation even in confined spaces and supports the use of heavy-duty attachments like hydraulic hammers.
Simple and compact structure, making installation and maintenance easy.
Uses advanced, globally recognized components for pneumatic, electrical, and operational parts.
Optimized to minimize hydraulic oil consumption while maximizing efficiency across various worksite operations.
Supports multiple attachments such as auger, grapple, hydraulic hammer, and narrow bucket, offering versatile and efficient performance.
Low investment with rapid return on investment.
1.6T Mini Excavator Parameter
Model:1.6T | |
Emission Standard | Tier 5/ Stage V |
Engine | Kubota |
Model | D722 |
Power /Rotation speed | 10.2kw(15HP)2500rpm |
Number of cylinder | 3 |
Maximum Travel speed | 4km/h |
PERFORMANCE PARAMETER | |
Standard Bucket capacity | 0.025m³ |
Swing speed | 9 rpm |
Max. Grade ability | 35° |
Maximum Bucket digging force | 18KN |
Maximum Arm digging force | 11KN |
Hydraulic system pressure | 18.2Mpa |
Machine weight | 1350kg |
MACHINE SIZE | |
Overall dimension (L*W*H) | 2450mm*940mm*2150mm |
Chassis width | 1000mm |
Axle base(Track length on ground) | 1300mm |
Track width | 200mm |
Min.Ground clearance | 380mm |
MAIN DEMENSIONS | |
Maximum Digging height | 2640mm |
Maximum Dumping height | 2100mm |
Maximum Digging depth | 1800mm |
Maximum Vertical digging depth | 2230mm |
Maximum Digging radius | 2350mm |
Minimum swing radius | 1190mm |
