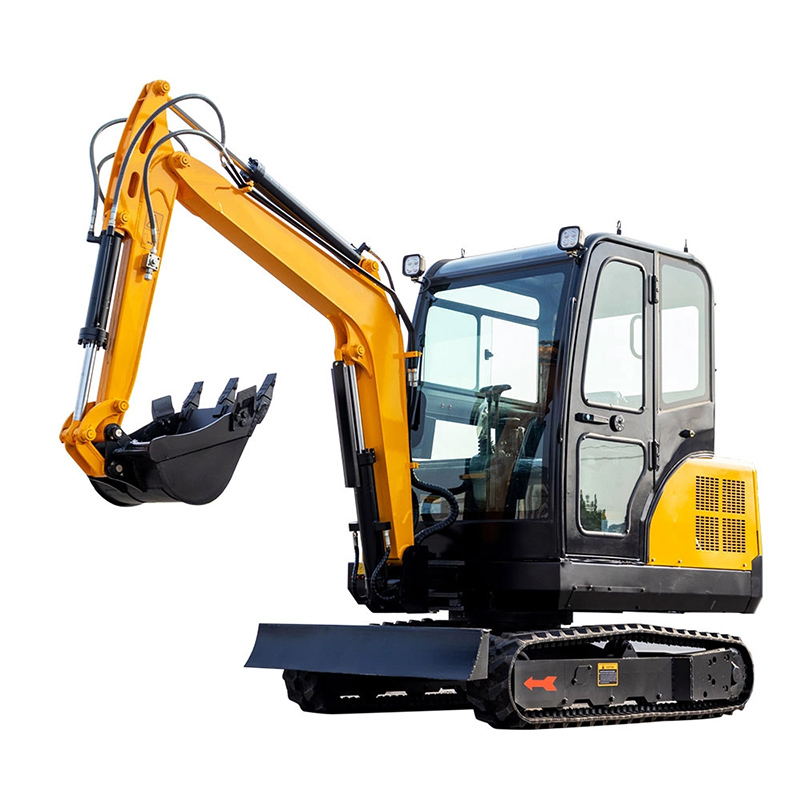

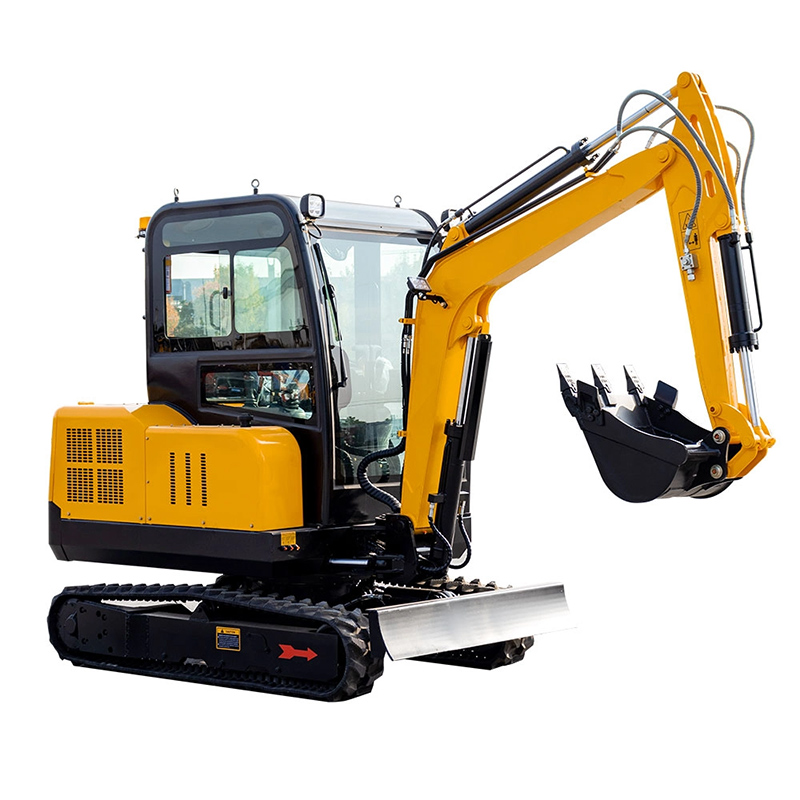

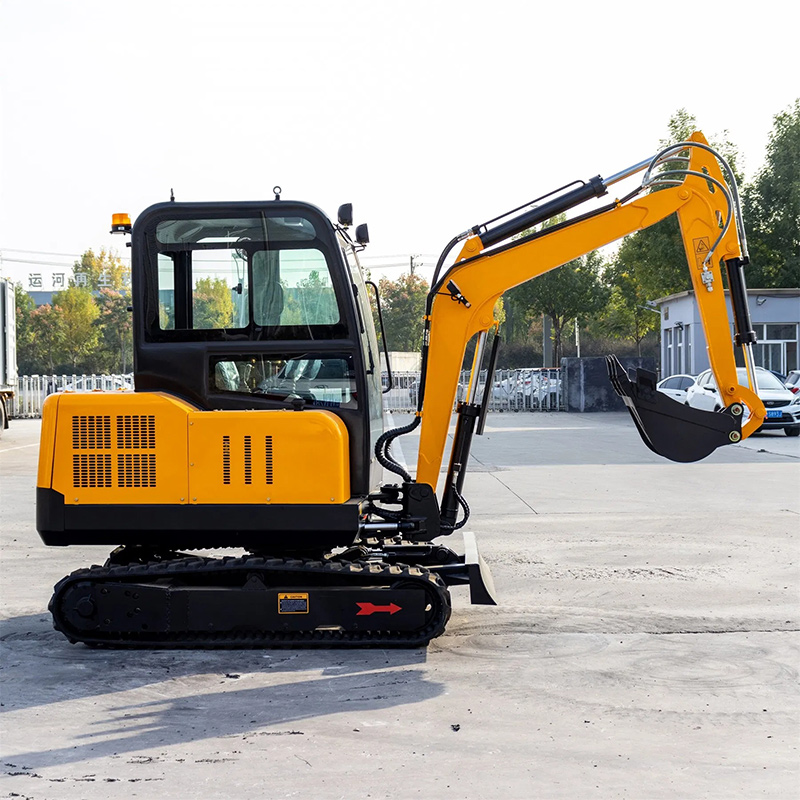

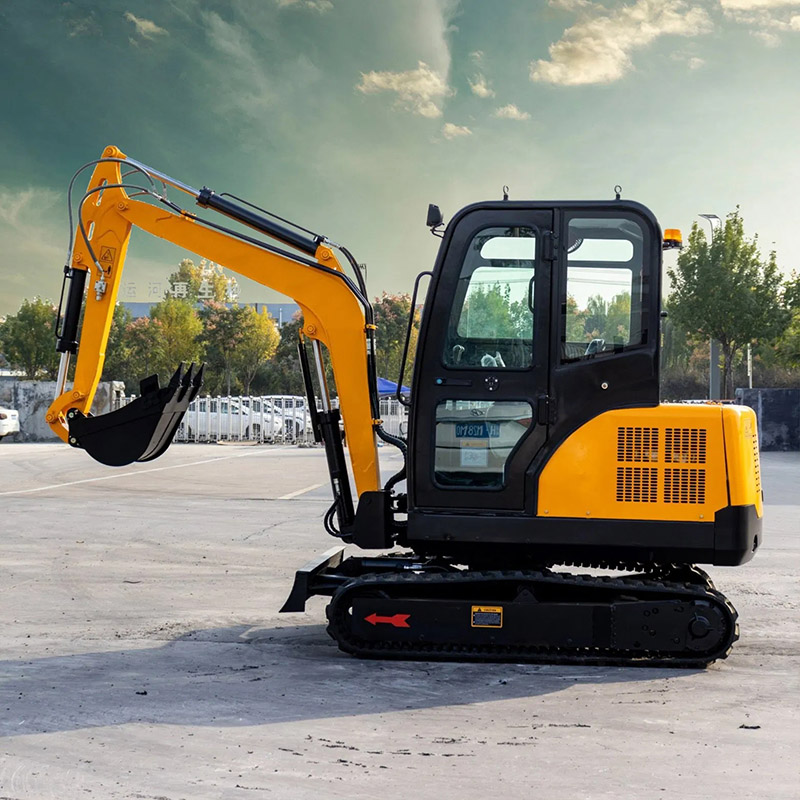

3Ton Mini Excavator Excavator
Enhanced Working Device with Yaw Function – The excavator’s working device supports yawing and compound operations with the upper structure, featuring an optimized design that strengthens the yaw mechanism and extends service life.
Advanced Hydraulic System – Equipped with a newly debugged hydraulic system, ensuring smoother operation during walking and compound movements, as well as improved slope heavy-duty slewing capabilities.
Durable and Reliable Structure – The machine’s robust design and high-quality components provide safe, stable, and long-lasting performance in various working conditions.

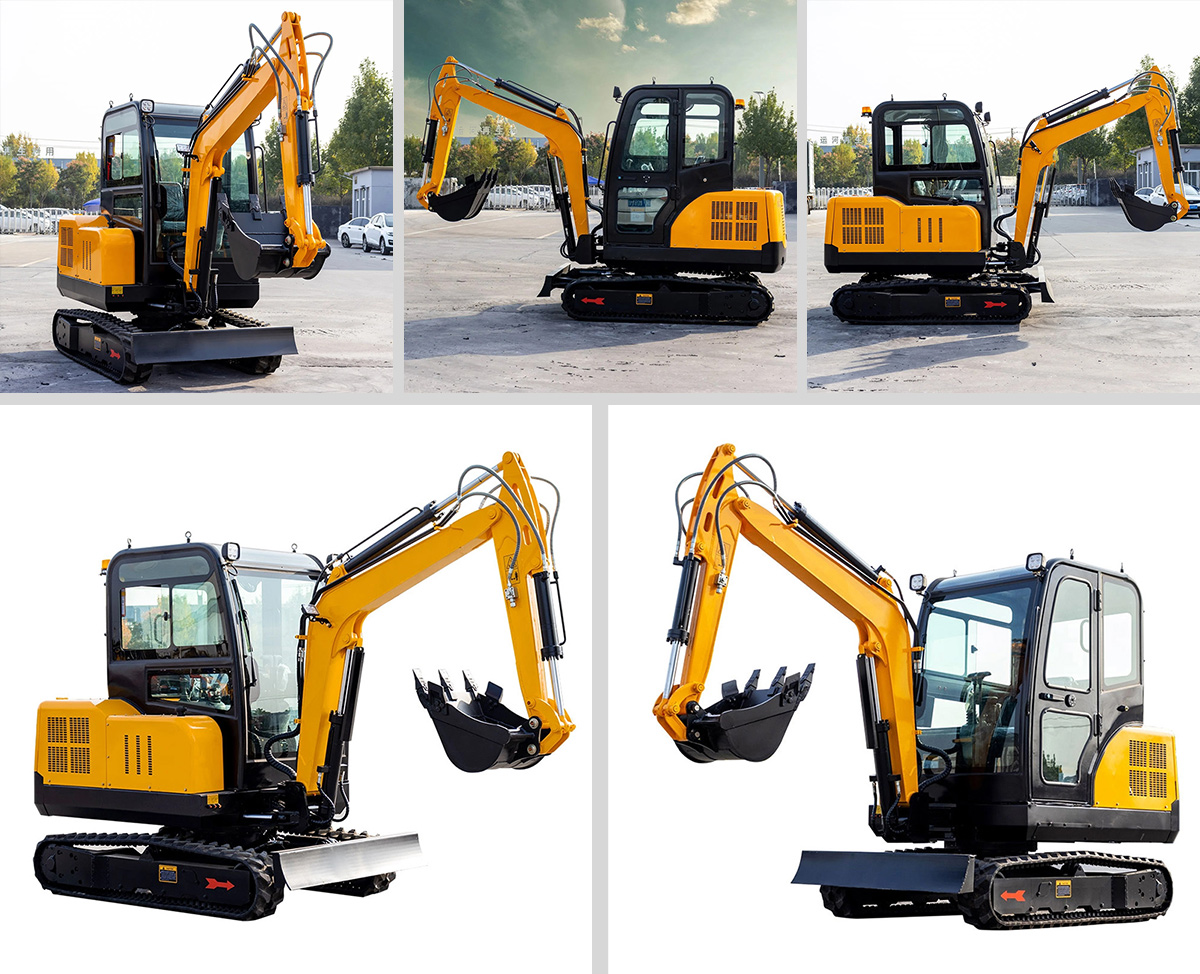

3T Mini Excavator Overview
Two Versions Available – The 3T mini excavator comes in cab and roof versions to suit different operational needs.
Cab and Roof Design – The cab features a one-piece steel structure for safety and reliability, equipped with heating and air-conditioning for all-season comfort, and maximized interior space. The roof version uses a high-strength seamless steel pipe design, ensuring durability with smooth, sleek lines.
Optimized Working Device – The excavator’s working device supports yawing and can be combined with upper slewing operations. Its newly optimized structure strengthens the yaw mechanism, significantly extending service life.
Advanced Hydraulic System – The updated hydraulic system enables smoother walking and compound operations, while enhancing slope-heavy-duty slewing capabilities for improved performance in challenging terrains.
3T Mini Excavator Parameter
Machine Size | |
Overall dimension (L*W*H) | 4170mm*1300mm*2280mm |
Axle base(Track length on ground) | 1230mm |
Track gauge | 1070mm |
Min.Ground clearance | 230mm |
Swing radius at tail | 1180mm |
Track System | |
Maximum Travel speed | 3.5km/h |
Width of track shoe | 230mm |
Number of track shoe per side | 38pcs |
Number of upper roller per side | 0 |
Number of bottom roller per side | 4 |
Engine | |
Emission Standard | Euro5/ EPA |
Engine Model | Kubota Engine |
Power/Rotation speed | 14.2kw(20HP)2000rpm |
Optional Engine | China Laidong 22.1kw,2300rpm |
Number of cylinder | 3 |
Performance Parameter | |
Standard bucket capacity | 0.1m³ |
Swing speed | 12rpm |
Max. Grade ability | 30° |
Max. Bucket digging force | 15.3KN |
Max. Arm digging force | 10.5KN |
Hydraulic system pressure | 18Mpa |
Machine weight | 3000kg |
Arm length | 1000mm |
Working Range | |
Max. Digging height | 3700mm |
Max. Dumping height | 2290mm |
Max. Digging depth | 2450mm |
Max. Vertical digging depth | 2160mm |
Max. Digging radius | 4370mm |
Min .swing radius | 2020mm |
Max. Lifting height of blade | 240mm |
Max. Cutting depth of blade | 310mm |
Boom swing angle(Left) | 75° |
Boom swing angle(Right) | 45° |
