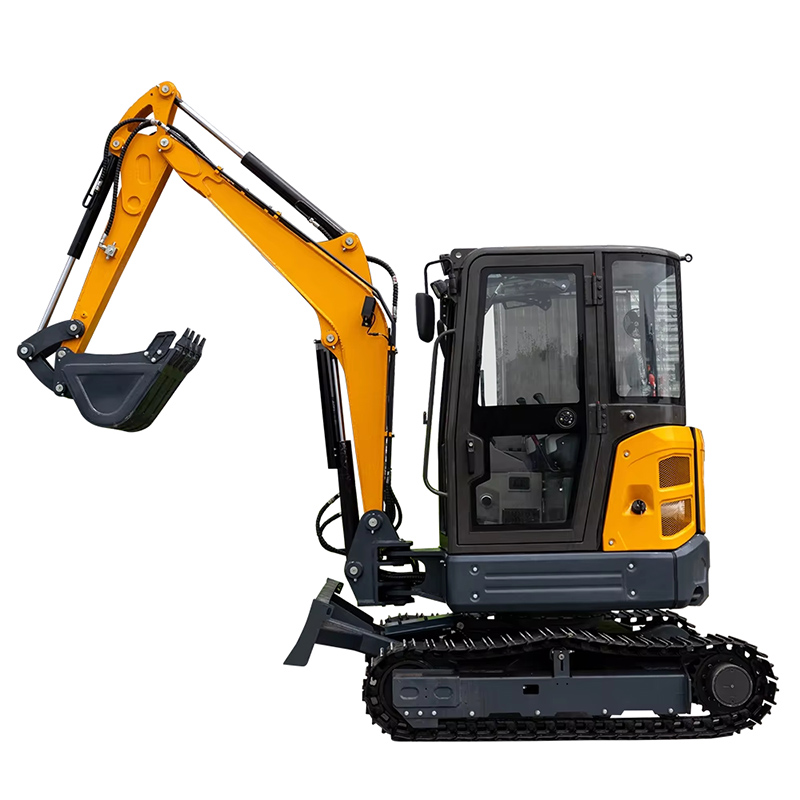

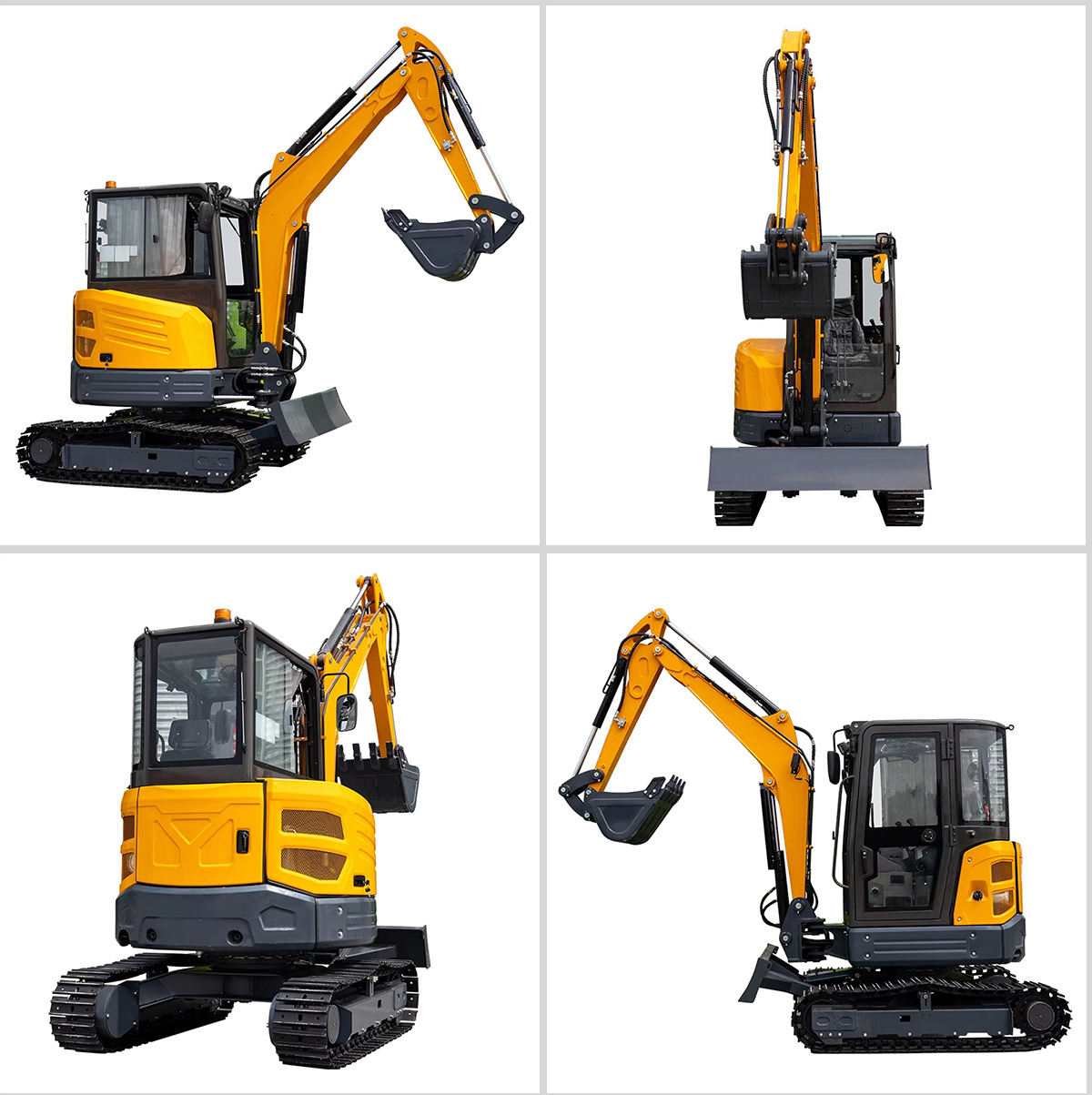

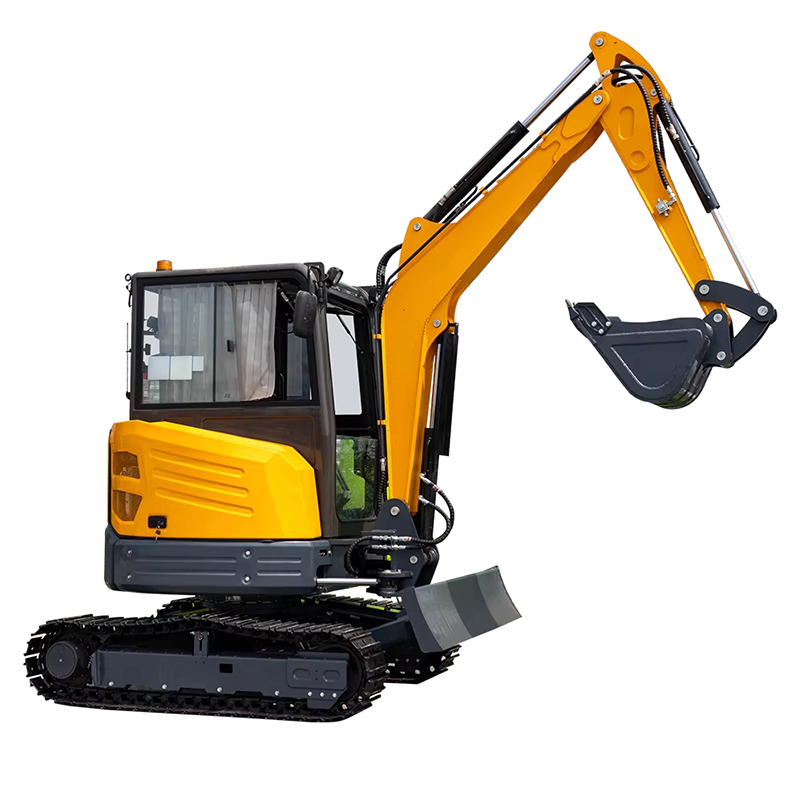

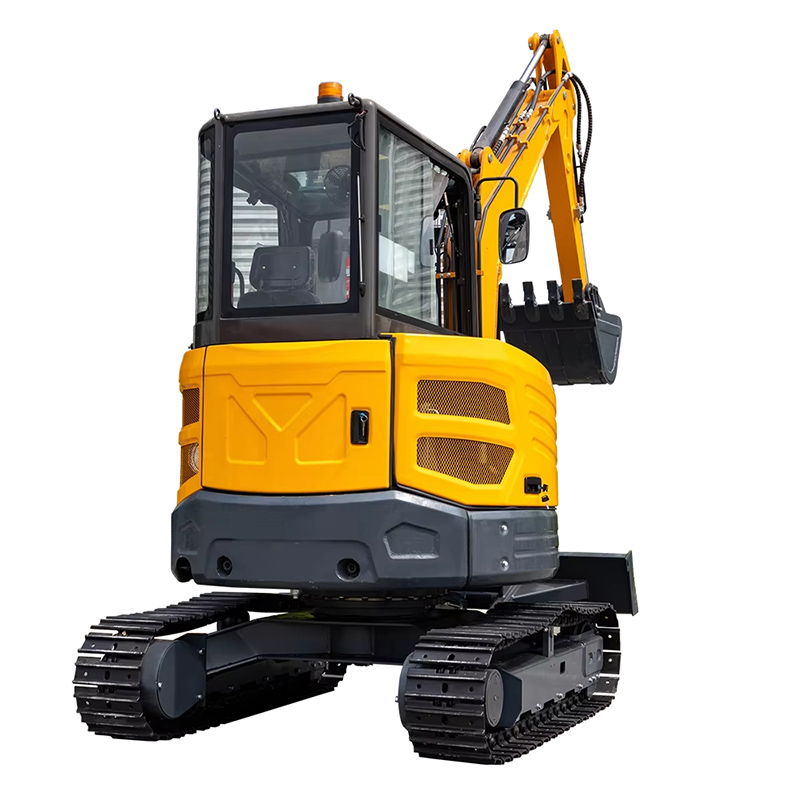

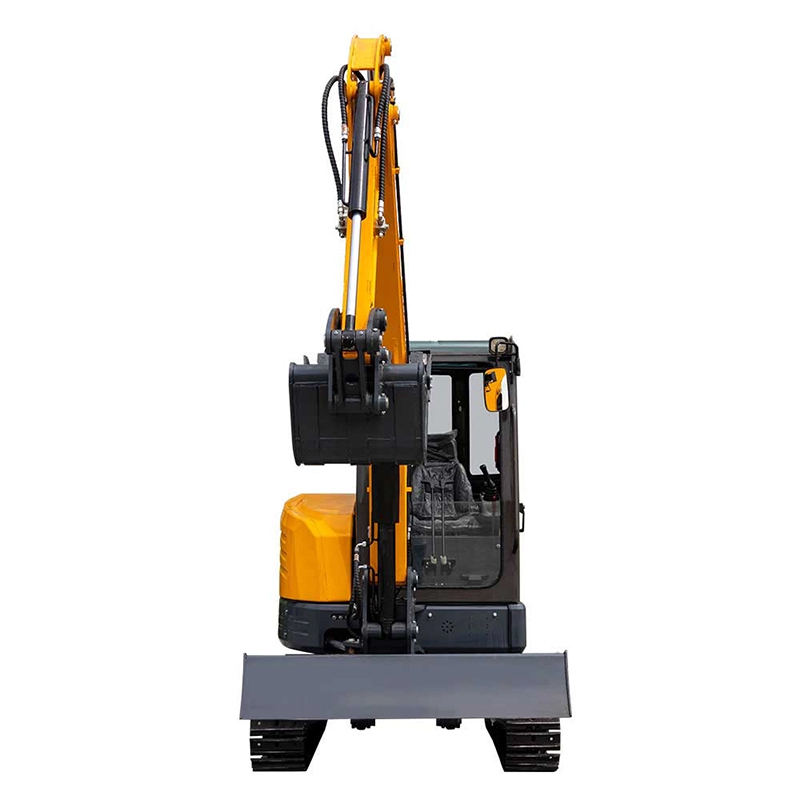

3500kg Mini Excavator Crawler Excavator

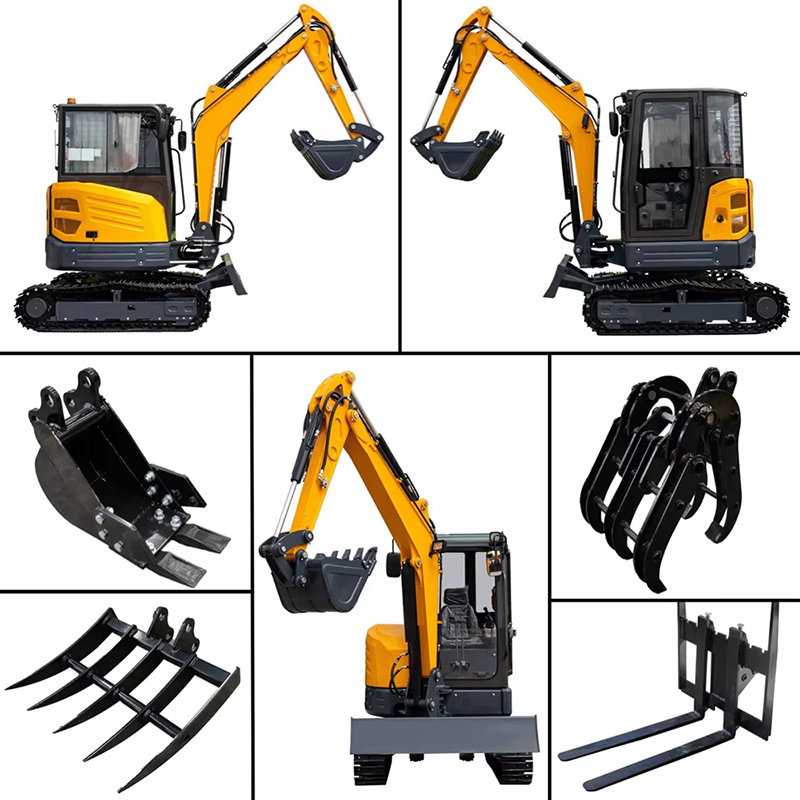

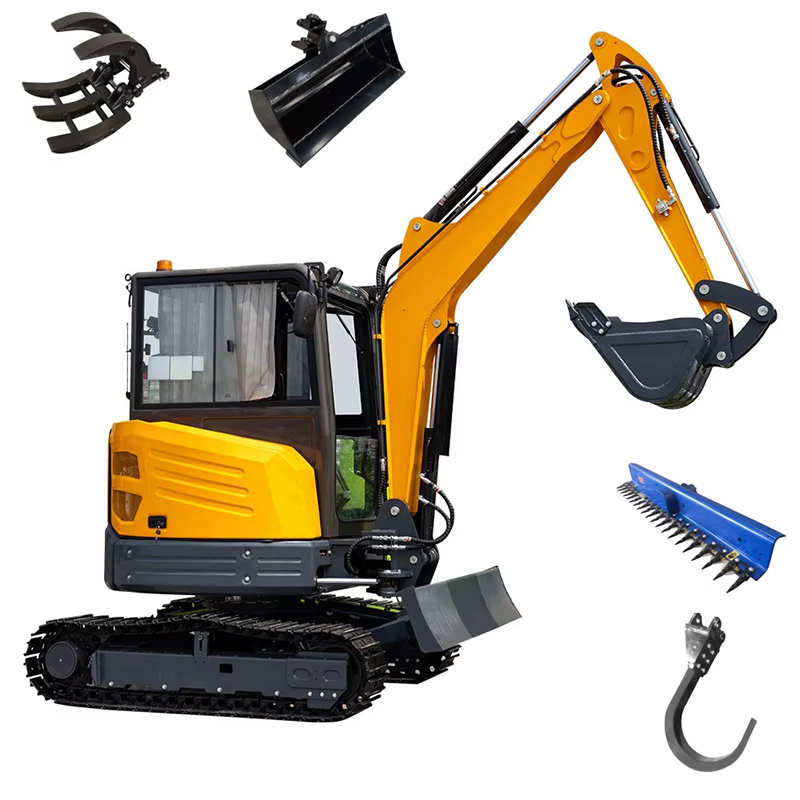

Versatile Multi-Function Operation: Supports digging, grabbing, drilling, bulldozing, ditch-cleaning, and rock-breaking for wide application across various construction projects.
Stable and Reliable Performance: Features an integrated travel motor, galvanized and wire-wrapped hydraulic hoses for enhanced durability and reduced collision and corrosion.
Flexible Structure for Complex Working Conditions: Equipped with a swing boom for edge-work efficiency and a telescopic chassis adaptable to different job environments.
User-Friendly and Easy to Operate: Designed with hydraulic pilot control for smooth, effortless operation, ensuring a high level of operator comfort and usability.
The 3.5-ton excavator is available in both crawler and wheel configurations, offering reliable performance and user-friendly operation. It supports multiple functions, including digging, grabbing, drilling, bulldozing, ditch-cleaning, and rock-breaking, making it suitable for a wide range of construction tasks such as water, power, and gas projects, telecommunication work, as well as farmland and garden applications. It delivers stable performance with an integrated travel motor to minimize collision. The swing boom enables efficient operation near edges, while the telescopic chassis adapts to various working conditions. Galvanized hydraulic hoses provide corrosion resistance, and wire-wrapped hoses help reduce impact from sand and stones. The hydraulic pilot control system ensures easy and smooth operation.
Machine size | |
Total length/transportation length(A): | 5029mm |
Total width(B) | 1720mm |
Upper width(D): | 1554mm |
Total height (shed roof/cab roof)(C): | 2580mm |
Standard track shoe width(F): | 300mm |
Minimum ground clearance(H): | 319mm |
Tail turnina radius(l): | 885mm |
Track ground length(J): | 1645mm |
Track length(K): | 2150mm |
Bulldozer Ground height(R) | 393mm |
Bulldozer digging depth(T): | 461mm |
Operating range | |
Maximum digging height (a): | 4938mm |
Maximum unloading height(b) | 3376mm |
Maximum digging depth(c): | 3106mm |
Maximum digging distance(d): | 5175mm |
Minimum radius of turn(e): | 2634mm |
Max. Height @ Min. Rotation Radius(f) | 3716mm |
Performance parameter | |
Operating weight (kG) | 3500kg |
SuCKetcaoaCw | 0.12m³ |
Rated power : | 18.5KW/2200rpm |
Turning speed : | 9r/min |
Climbing ability : | 58% |
Bucket digging force : | 30.4KN |
Bucket rod digging force : | 18.2KN |
Main parts | |
Engine : | Kubota D1703 |
Flow sharing main valve : | HVSE-09-09-P270-BE212 |
Swash plate axial plunger variable pump : | HP5V45/AV10RB2S2MGA-L1/1-HT1 |
Travel motor : | Variable plunger motor |
Fuel tank : | Capacity 50L |
Cooling system : | Capacity 5.05L |
Hydraulic oil tank : | Capacity 55L |
| Valve pressure: | 24MP |
| Pump displacement: | 40cc |
| Travel speed : | 4.2/2.4km/h |
| Enqine oil capacity : | 5.1L |
| Valve svstem flow : | 79.2L/min |
| Pump Max.speed : | 3250r/min |
