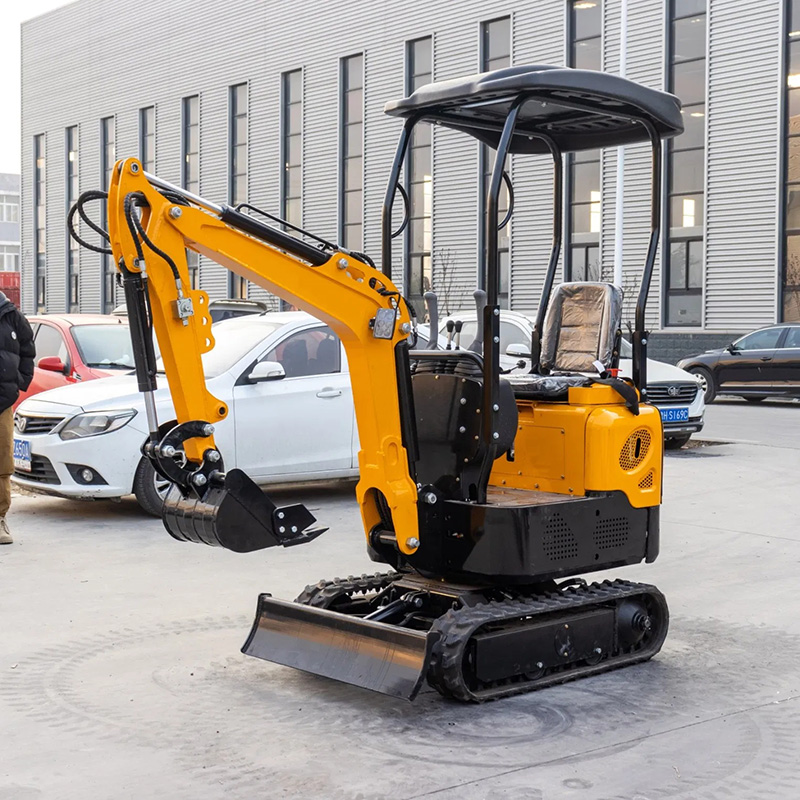

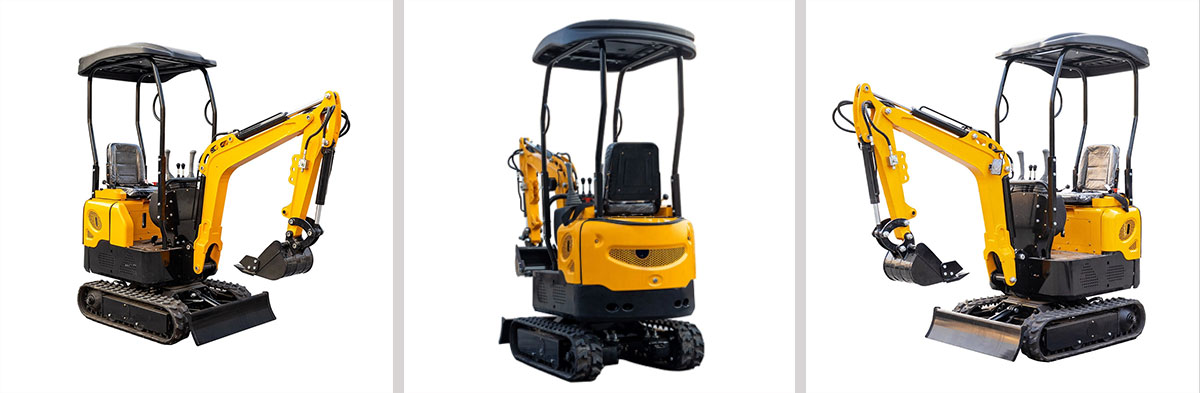

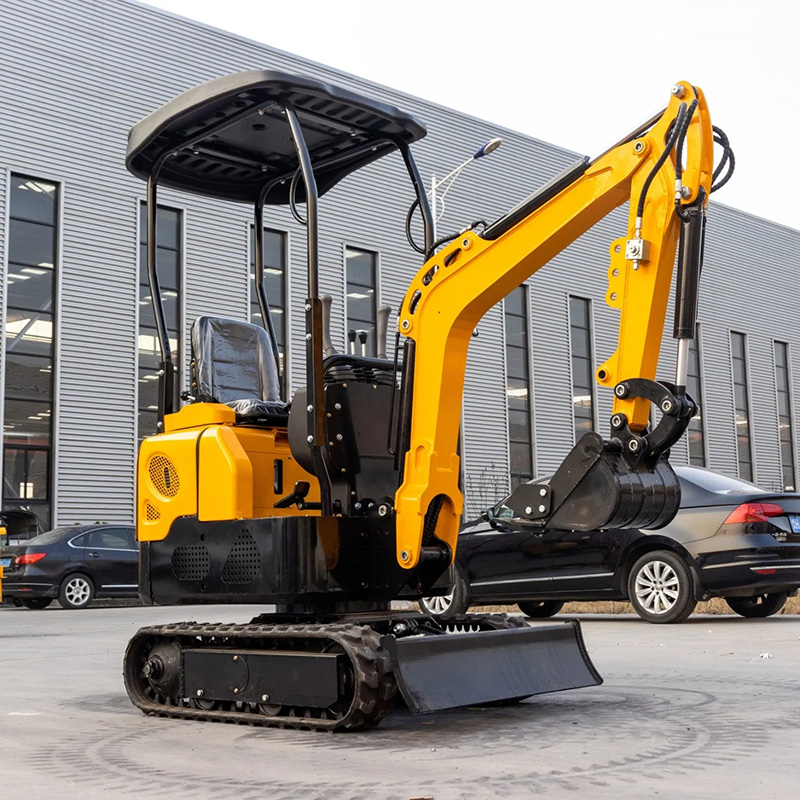

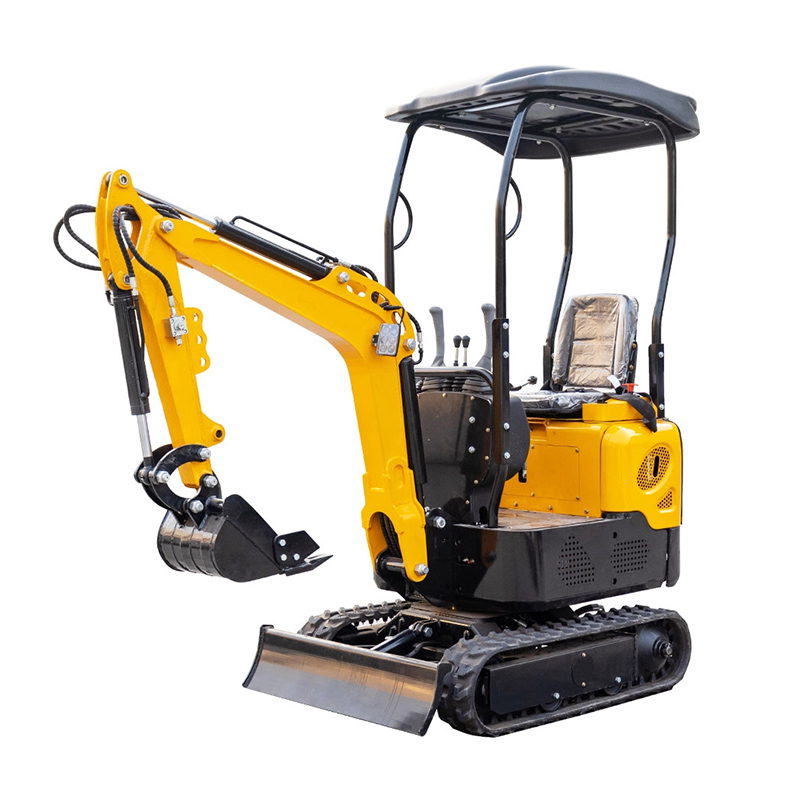

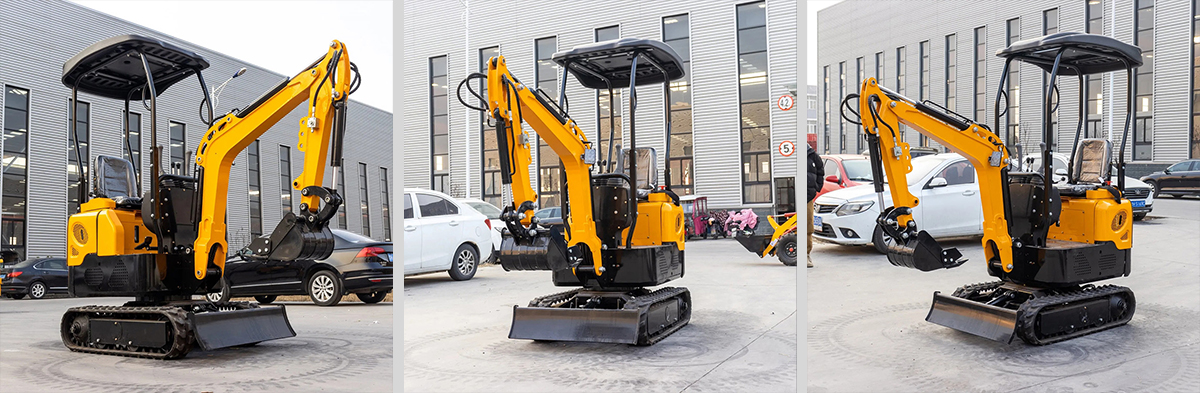

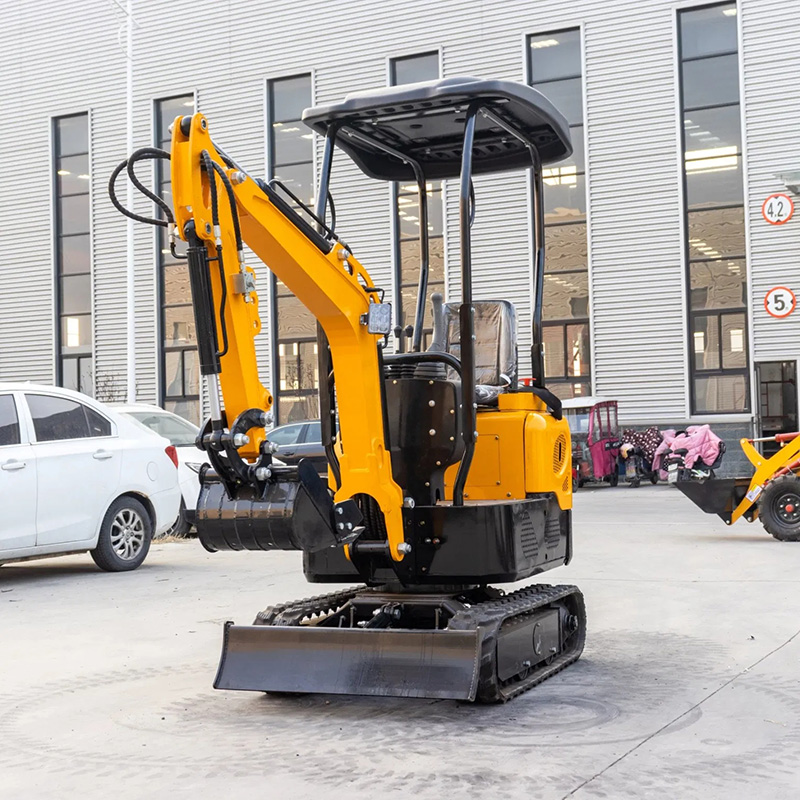

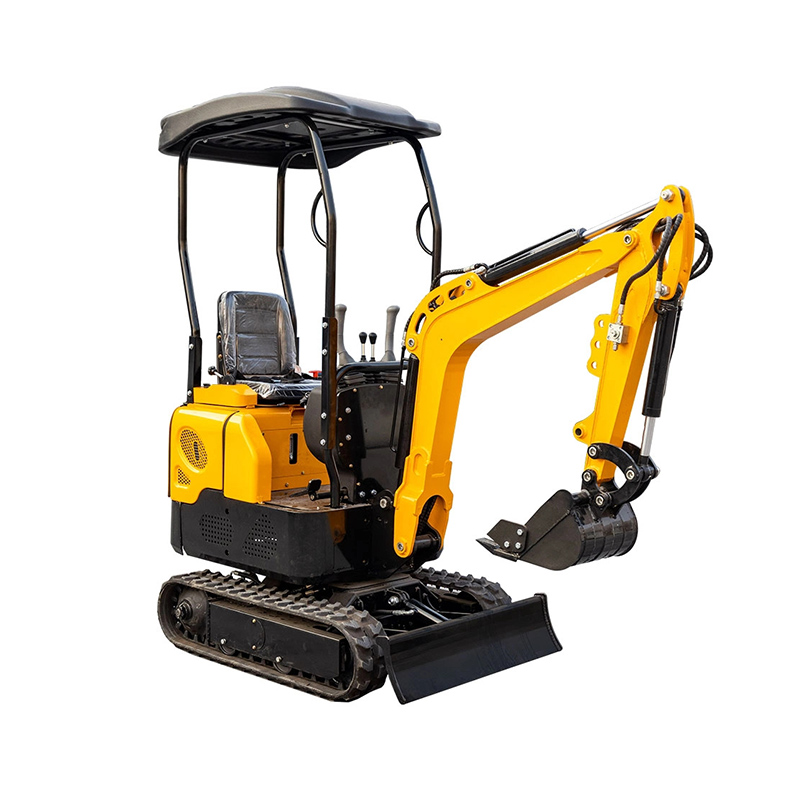

1ton Mini Excavator Instruction
Powerful and Efficient Engine
Equipped with a KOOP 192F or Bailiton engine meeting EU and US emission standards, delivering up to 7KW of power for stable, high-performance operation across diverse terrains.Excellent Fuel Efficiency and Stability
The advanced engine design ensures efficient power output, smooth performance, and reliable operation even under challenging working conditions.Enhanced Structural Durability
All structural components are precision-processed by trusted manufacturers, ensuring long-lasting strength and superior resistance to wear and corrosion.High-Quality Surface Treatment
Undergoes shot blasting, pickling, phosphating, and plastic spraying for excellent paint adhesion and rust protection, providing a smoother, more durable finish than conventional polishing and painting methods.
1 Ton Mini Excavator Instruction
HIGH-PERFORMANCE ENGINE
The 1T mini excavator is powered by a renowned KOOP 192F or Bailiton engine, both compliant with European and U.S. emission standards, delivering up to 7KW of power. With efficient output and stable performance, this excavator operates reliably across various terrains and demanding working environments.
DURABLE DESIGN
All structural components of the Hightop excavator are manufactured by trusted suppliers and undergo multiple surface treatments, including shot blasting, pickling, phosphating, and plastic spraying. These processes greatly enhance paint adhesion, prevent fading, and ensure a smooth, corrosion-resistant finish. In contrast, conventional polishing and painting methods used by others make the body prone to rust.
HIGH SAFETY
Equipped with hydraulic pipes imported from Germany, the HT10G offers outstanding wear resistance, aging resistance, flexibility, and tensile strength. These features effectively prevent hydraulic oil leakage, ensuring the stability of the hydraulic system and enhancing the excavator’s overall reliability and longevity.
OPTIONAL SWING BOOM
The boom can swing 60 degrees left or right, offering greater flexibility and precision during operation. Competing models typically have a fixed boom or only allow limited 30-degree movement.
EXCELLENT MAJOR COMPONENTS
The excavator is equipped with premium components sourced from developed countries—Japan-made main hydraulic pump, Italian main valve, swing motor, and travel motor—ensuring high performance and durability.
DOZER BLADE
The adjustable dozer blade can be extended from 84cm to 105cm, with a working height range of -15cm to +15cm, allowing for enhanced adaptability to various work conditions.
1ton Mini Excavator Parameter
PARAMETERS
| Model | HT10G |
| Weight | 1000kg |
| Digging bucket capacity | 0.025cbm/120kg |
| Rotation speed | 12RMP |
| Climbing capacity | 30° |
| Engine | KOOP 192/Briggs&Stratton |
| Main Valve | Beifang |
| Rated power | 7KW |
| Overall length / transport length A/M | 4000/2380mm |
| Overall width | 940mm |
| Overall height (cab roof) | 2268mm |
| Total track width | 930mm |
| Standard track plate width | 180mm |
| Track gauge | 750mm |
| Wheelbase | 884mm |
| Track ground length | 962mm |
| Track length | 1204mm |
| Minimum ground clearance | 100mm |
| Tail swing radius | 810mm |
| Max. Digging height | 2455mm |
| Max. Dumping height | 1650mm |
| Max. Digging depth | 1855 mm |
| Max. Digging radius on ground | 3050mm |
| Max. digging radius | 3130mm |
