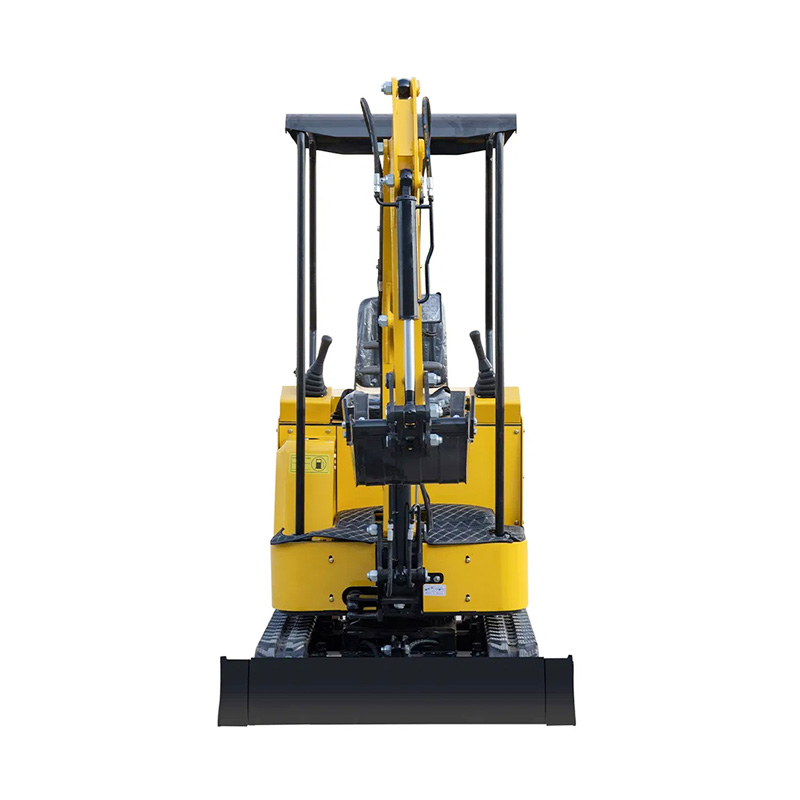

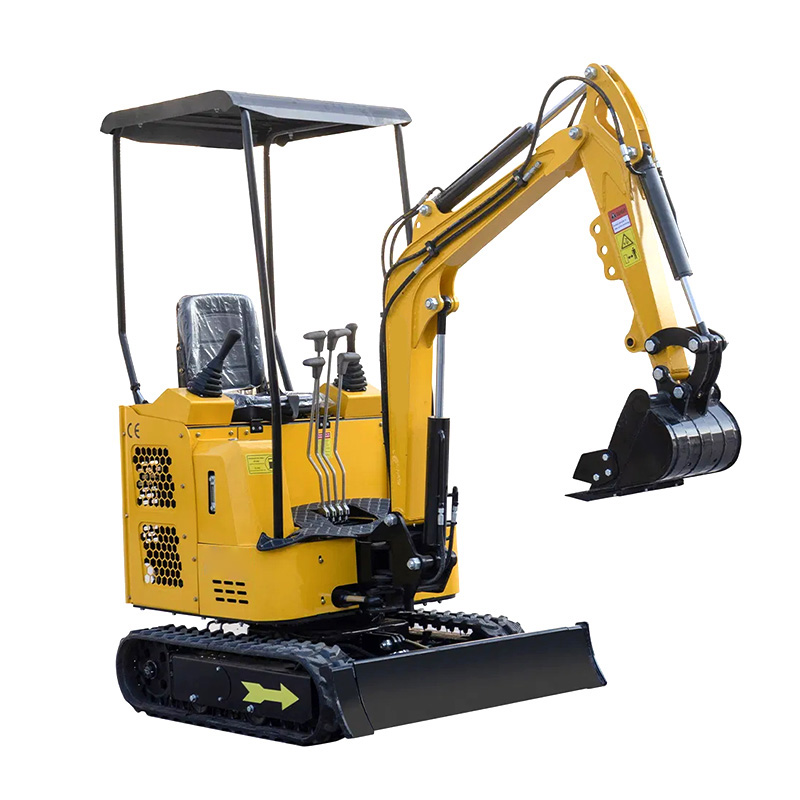

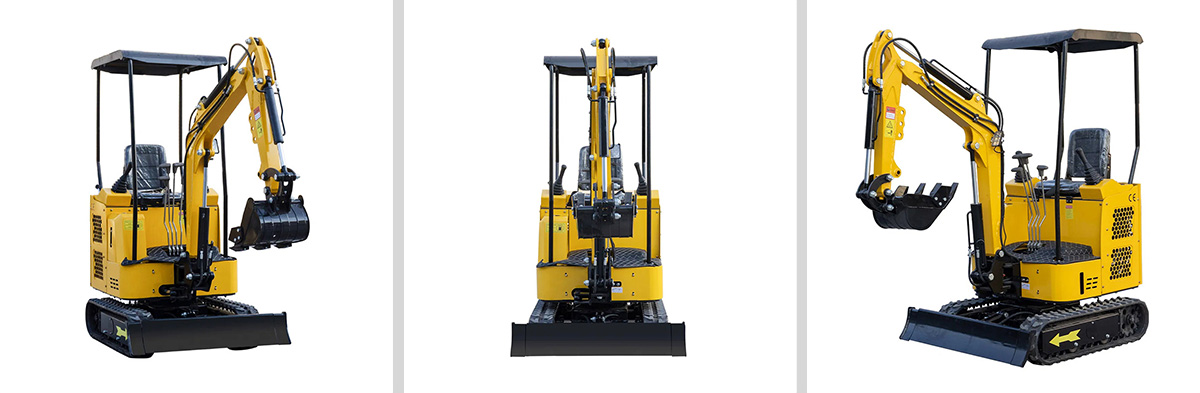

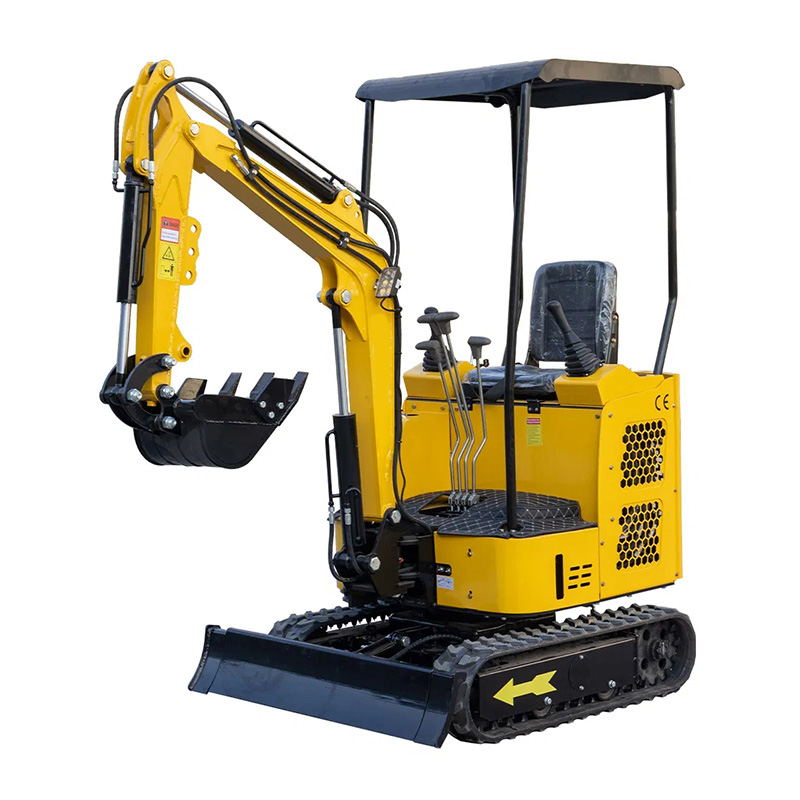

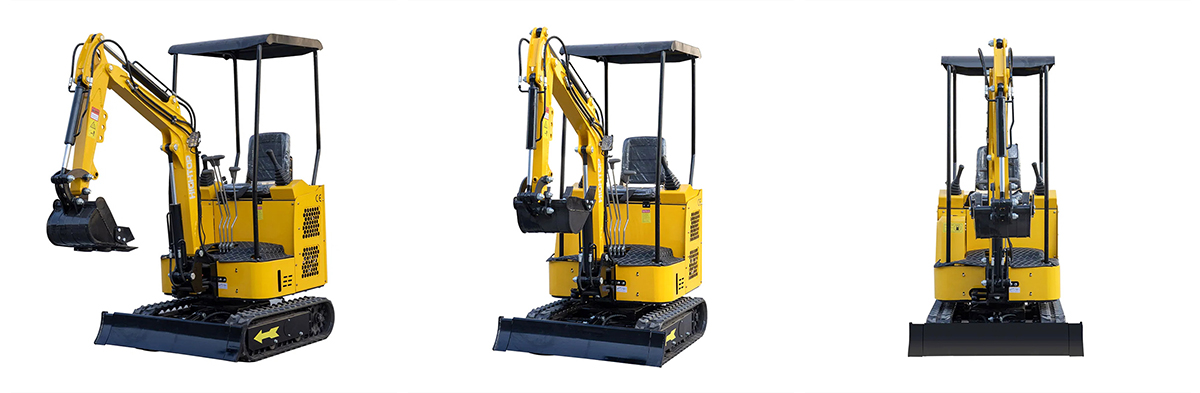

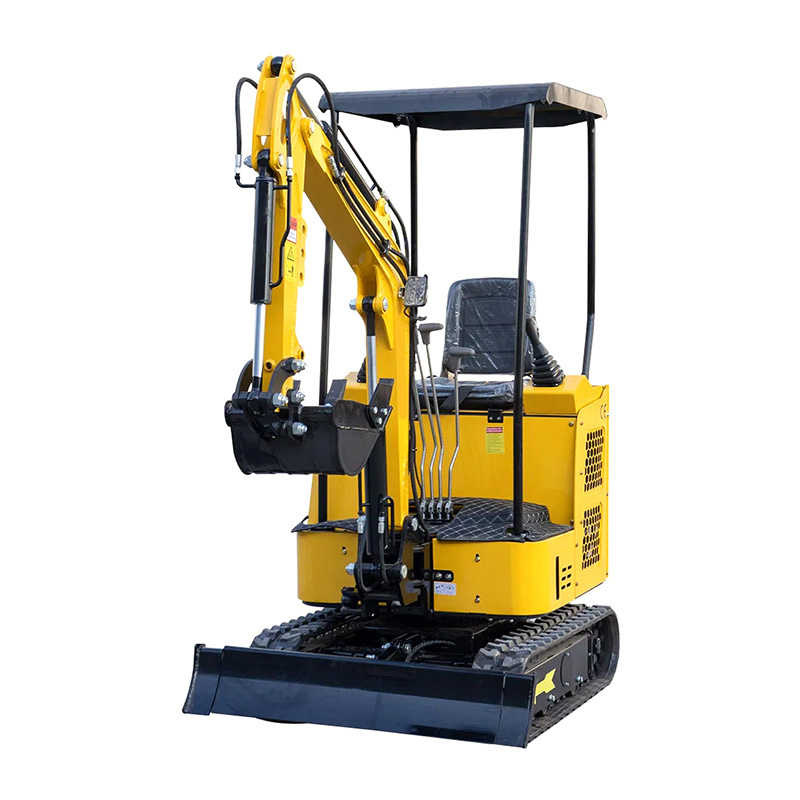

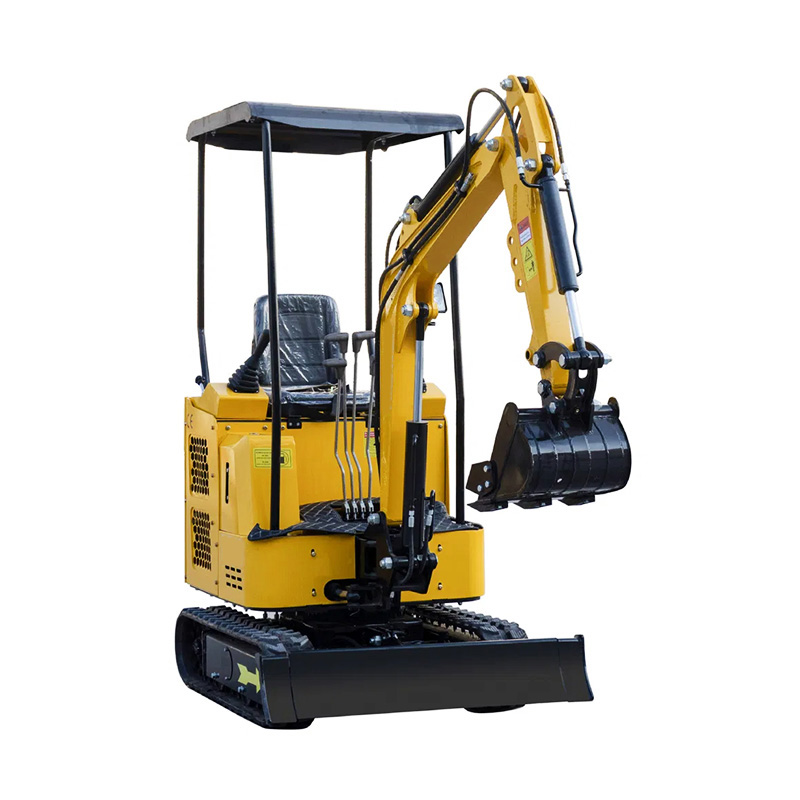

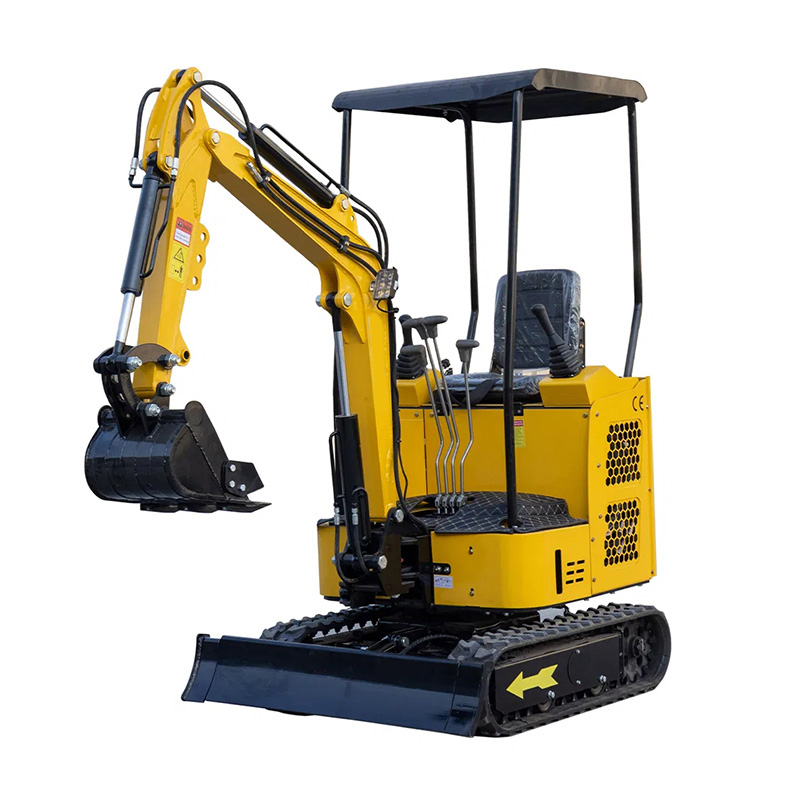

1.5T Mini Excavator 1500kg
Strong Power & Low Fuel Consumption: Equipped with a famous-brand engine for powerful performance and excellent fuel efficiency.
Flexible & Versatile Design: Features 360° rotation, extendable track (990–1170mm), and optional boom swing or hydraulic joystick.
Durable & Reliable Quality: Certified by Euro 5, EPA, CE, and ISO with long service life and strong rubber tracks for stability.
Easy Operation & Maintenance: Simple controls with hydraulic pilots and convenient oil drain pipes for smooth and efficient use.
Euro 5, EPA, CE, and ISO certified
Optional features: hydraulic pilot joystick, boom swing, and extendable track
Long service life
Powerful performance
360° rotation capability
Easy and convenient operation
Low fuel consumption
Superior quality
Equipped with hydraulic pilot control for smoother and more precise operation.
Powered by a well-known brand engine with low fuel consumption and reliable quality.
Multiple optional configurations available to meet various working needs.
Extendable track ranging from 990mm to 1170mm for better stability and flexibility.
Durable rubber tracks with gear transmission provide strong traction; telescopic crawler optional.
All models come with oil drain pipes for both the travel motor and swing motor, making maintenance easier.
1.5T Mini Excavator Parameter
Model:1500kg | Main Demensions | Operating Range | |||
Weight | 1500kg | Overall dimension | 2550x940x1380 mm | Max. Digging depth | 1650 mm |
Digging bucket capacity | 0.025cbm/120kg | Wheelbase | 770mm | Max. Vertical digging depth | 1800 mm |
Bucket width | 380mm | Total length of track | 1090mm | Max. Digging height | 2610 mm |
Engine | KOOP (292F) | Platform ground clearance | 380 mm | Max. Dumping height | 1850 mm |
Bore stroke | double cylinder, Air cool | Platform back turning radius | 733 mm | Max. Digging radius on ground | 2850 mm |
Rated power | 14 kw/3000r/min | Chassis width | 940 mm | Min. Rotation radius | 1330 mm |
Displacement | 0.794 L | Track width | 180 mm | Max. Upgrade height of bulldozer blade | 345 mm |
Travel speed | 3.5km/h | Chassis ground clearance | 380 mm | Max. Digging depth of bulldozer blade | 255 mm |
