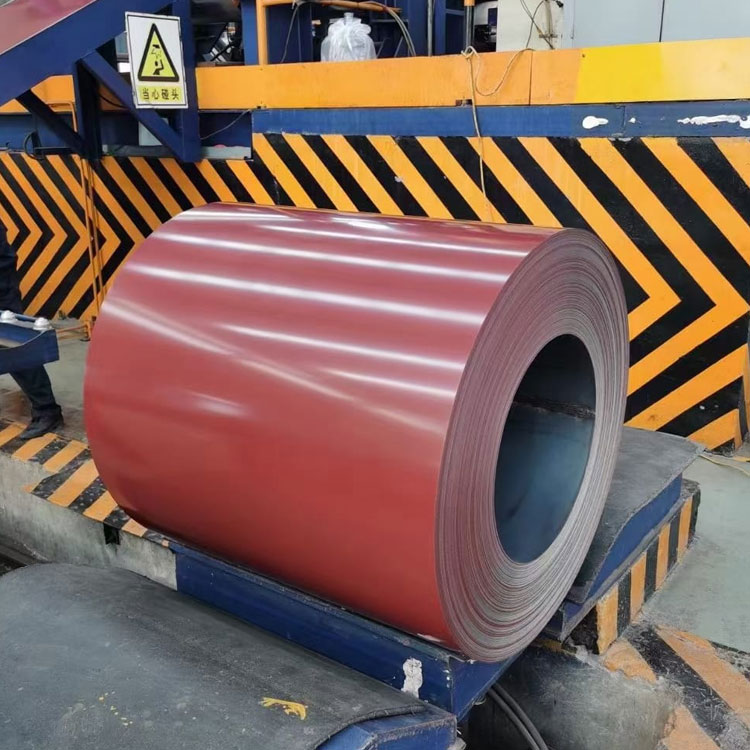

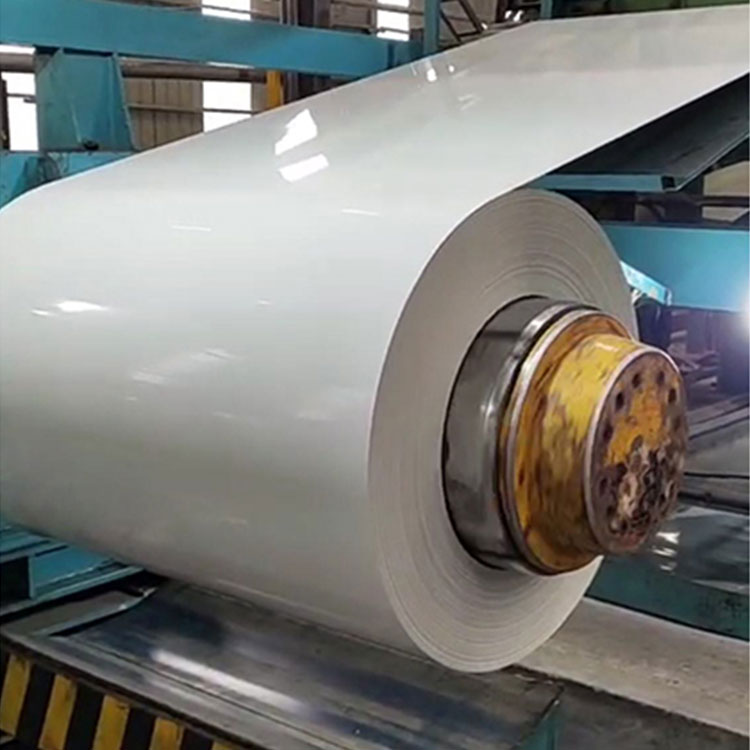

Color coated aluminum coil
Excellent Corrosion Resistance: Color-coated aluminum coils have exceptional surface stability and are highly resistant to corrosion, making them ideal for long-term use in outdoor and industrial environments.
Versatile Application Range: They are widely used in various industries such as construction, decoration, packaging, and electronics — including aluminum composite panels, ceilings, roofs, and cans — offering great flexibility across multiple fields.
Durable and Weather-Resistant Coatings: With advanced coating options like fluorocarbon and polyester paints, these coils maintain strong color retention, gloss, and surface integrity even under harsh weather conditions.
High Aesthetic and Functional Value: The product combines both decorative appeal and structural performance, providing smooth finishes, vibrant colors, and easy formability for diverse architectural and design needs.
Color-coated aluminum coil, as the name suggests, is an aluminum substrate treated with paint. Commonly used coatings include fluorocarbon color-coated aluminum coil and polyester color-coated aluminum coil. It is widely used in aluminum-plastic panels, industrial factory roofs and walls, aluminum blinds, composite panels, aluminum ceilings, cans, electronics, aluminum honeycomb panels, aluminum ceilings, and roofing. Its performance is very stable and it is not easily corroded.
Material | A1100, A3003, A3004, A3105, A5052, A8011 |
Coating | Fluorocarbon, polyester, epoxy |
Aluminum plate thickness | 0.2mm-4.00mm |
Processing width | Coated aluminum coil 20mm-1500mm |
Barrel diameter | 150mm, 405mm, 505mm, 508mm, 510mm |
Coating thickness | PVDF (fluorocarbon) >=25micron POLYESTER (polyester)>=18micron |
Gloss | 10-90% |
Coating hardness | greater than 2H |
Adhesion | Not inferior to level 1 |
Impact resistance | 50kg/cm |
Color | Customized according to customer requirements |
Color-coated aluminum coil has a rich color range, and color-coated aluminum coil has good plasticity and machinability, making it an ideal material for various architectural shapes. Color-coated aluminum coils have provided architects, designers and owners with a color space to achieve personalized exterior walls and ceilings, and are also the most ideal material for architectural modeling. field is applied.
Construction and decoration: aluminum-plastic composite panel, aluminum veneer, aluminum honeycomb panel, interior aluminum panel, aluminum alloy shutter door, garage door, awning, aluminum ceiling, thermal insulation composite metal plate, building metal curtain wall, exterior wall decoration, aluminum Magnesium-manganese metal roof, 8011 metal roof, 3003 metal roof, 3004 metal roof, corrugated aluminum alloy roof, corrugated aluminum alloy roof, steel structure building, metal ceiling, interior decoration, fireproof board, advertising display board, chassis shell;
Electronic appliances and household appliances: elevators, electrical enclosures, computer cases, computer panels, lighting, furniture, solar reflectors, solar water heater water tank enclosures;
Road traffic, automobiles and others: traffic facility signs, vehicle interiors, ship decorations, advertising panels, chassis shells, luggage, metal packaging, aerospace, automotive radiators;
Furniture and home improvement: metal furniture, furniture finishes, kitchen cabinets, various countertops, box partitions, mobile rooms, toll booths, pipe insulation, etc., with beautiful appearance, light weight, corrosion resistance, impact resistance, easy processing, Good fire performance, easy to clean, easy to maintain, and many colors.
Type:
Color coated aluminum coil coating is divided into: polyester coated aluminum coil (PE), fluorocarbon coated aluminum coil (PVDF). Continuous solid film with protective decorative properties. It is a kind of anti-UV ultraviolet coating. The polyester resin uses the polymer containing ester bonds in the main chain as the monomer, and adds the alkyd resin. The ultraviolet absorber can be divided into matt and high-gloss series according to the gloss. It can give colorful aluminum products rich colors, and has good gloss and smoothness, as well as superior texture and feel, and can also increase the sense of hierarchy and three-dimensionality. It can protect objects exposed to the atmosphere and attacked by ultraviolet radiation, wind, rain, frost and snow; due to temperature difference, freeze-thaw cycles, corrosive gases and microorganisms, the coating can play a protective role. Especially suitable for interior decoration and advertising boards.
Surface:
Color-coated aluminum coils can be simply divided into:
Color-coated aluminum coils coated with paint on the surface can be divided into polyester (PE) coated aluminum coils, fluorocarbon (PVDF) coated aluminum coils, and epoxy roller coated aluminum coils. Of course, there are also cases where one side is coated with fluorocarbon and the other side is coated with polyester; there are even cases where both sides are coated with fluorocarbon;
The thickness of the coating can be divided into single coating (4-20 microns); double coating (25-28 microns); 3 coatings (35-38 microns);

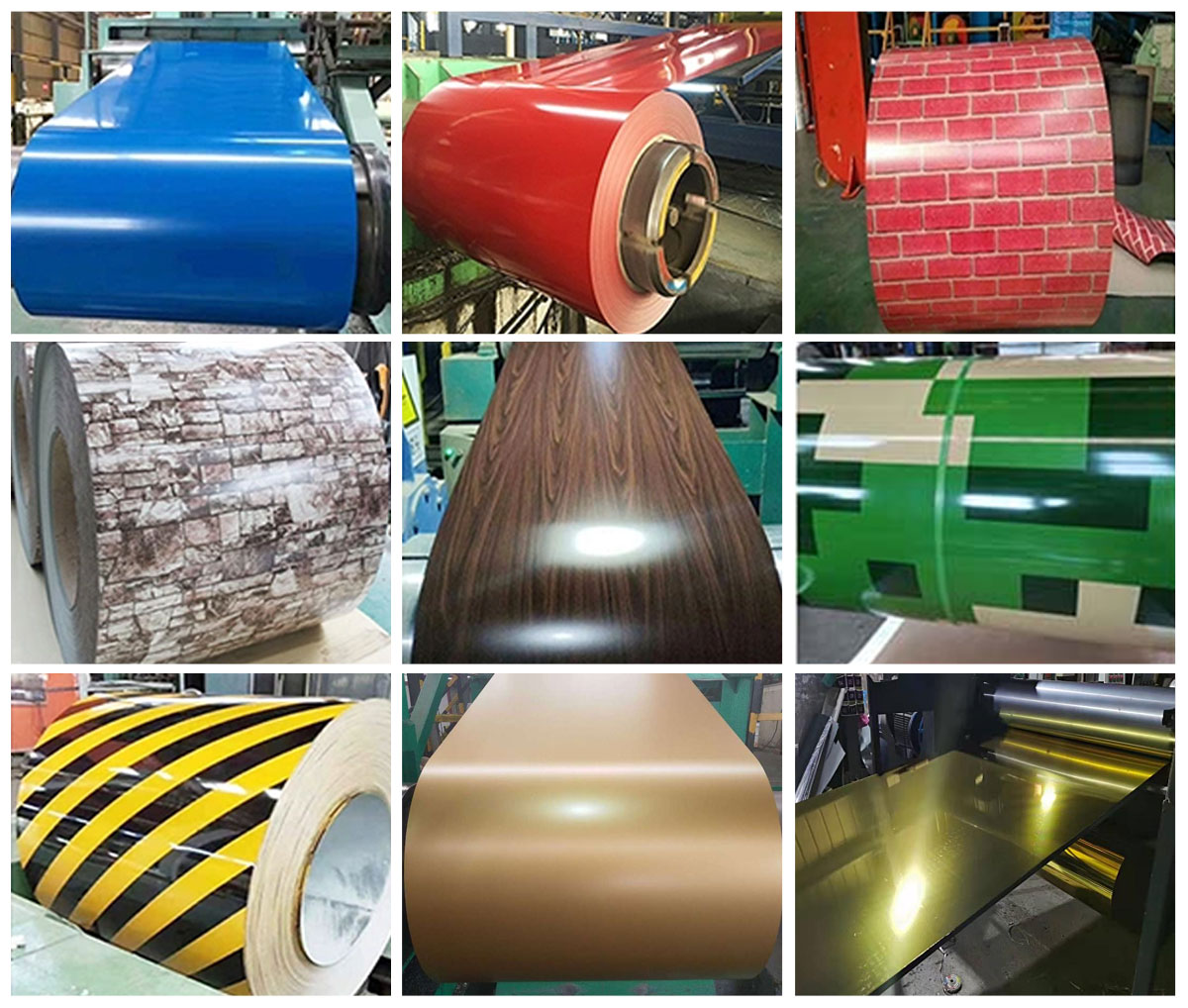

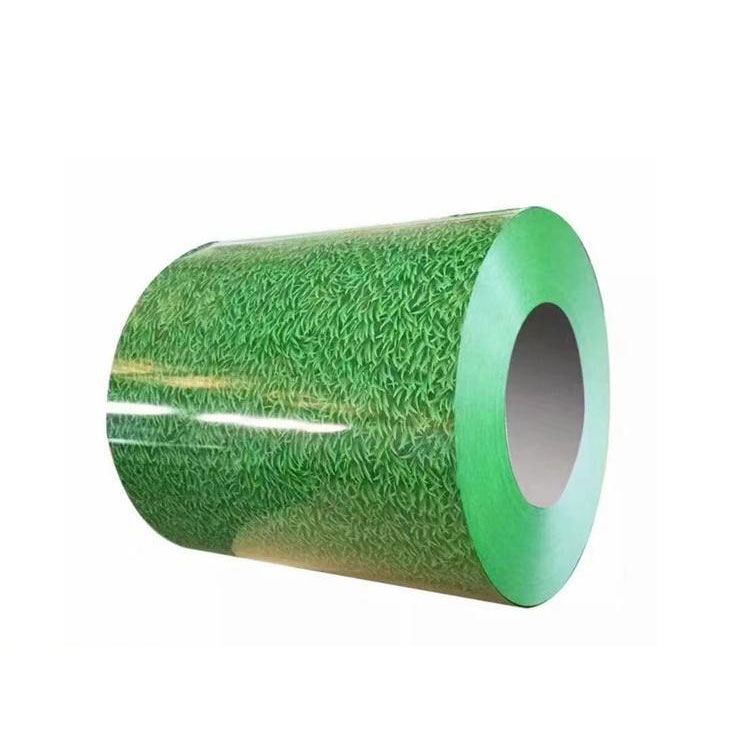

Aluminum coils with patterns on the surface are also called printed aluminum coils; because of different uses, they are often called roofing materials (aluminum-magnesium-manganese roofing systems), ceiling materials (for aluminum alloy ceilings), and home appliance panels (used in aluminum-magnesium-manganese roofing systems). Interior and exterior decoration of household appliances), food materials (food-grade chroming and roller coating, in line with the US FDA standard), wire drawing board (the surface is brushed), etc.
